Vendor: Omni Design Technologies, Inc. Category: Voltage Reference

Voltage & Current Reference Generator in TSMC 6/7nm FFC

The ODT-REF-6T is a reference current and voltage generator.

Contact Provider Request Datasheet
TSMC 7nm N7+ View all specifications

Overview

The ODT-REF-6T is a reference current and voltage generator. This block includes a VREF/R circuit to create programmable voltages and currents.

ODT-REF-6T requires a constant 0.6V voltage input (ideally derived from a bandgap) in order to generate the required signals. Programming capability exists for all currents and voltages, to allow for global process tuning. If different input voltages are required, please discuss with Omni Design.

The ODT-REF-6T is powered by a 1.8V analog supply and a 0.75V digital supply (which is only used for level shifting to the analog supply). Note that this block does not have its own bumps, and can share its supply with adjacent Omni IP. It does not contain ESD protection, and the highest metal layer is M8. Trim will be required across process corners.

Key features

  • TSMC 6/7nm FFC
  • Voltage reference and current generator
  • 10µs wake up time
  • Programmable voltage and current settings

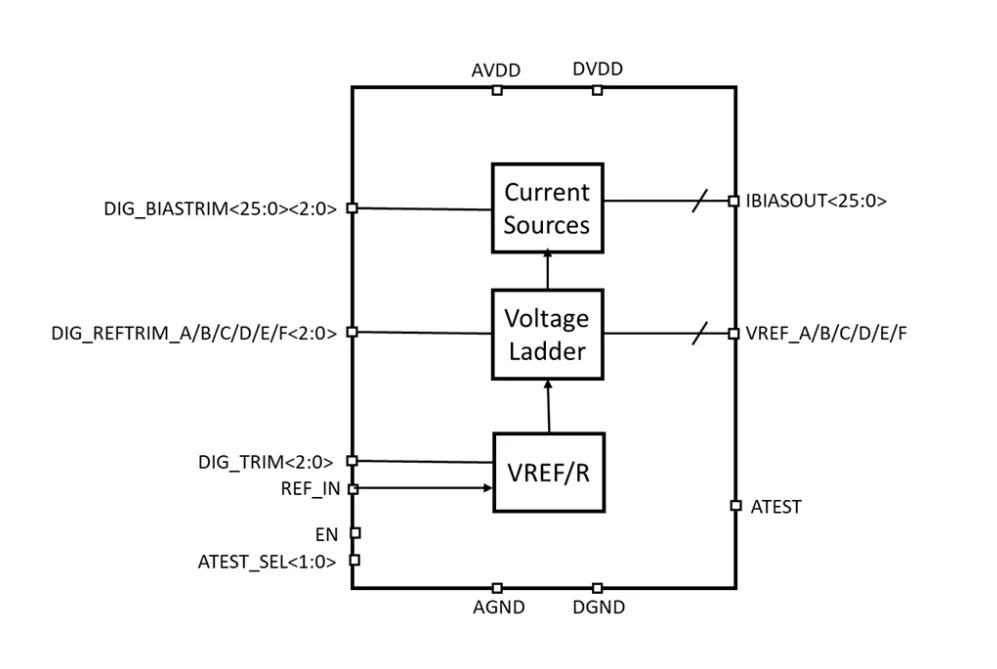

Block Diagram

ODT-REF-6T block diagram

Applications

  • General purpose reference voltage and current generation.
  • Bias generation for data converters

What’s Included?

  • Datasheet
  • Hard GDS Database (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
TSMC 7nm N7+ —

Specifications

Identity

Part Number
ODT-REF-6T
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Provider

Contact Omni Design Technologies, Inc.
