What is Multi-format video decoder IP Core?
Multi-format video decoder IP Core is a Video Processing IP core from VeriSilicon Microelectronics (Shanghai) Co., Ltd. listed on Semi IP Hub.
Vendor:
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Category:
Video Processing
Multi-format video decoder IP Core
The VC9000D enables 8K decoding with a small silicon single-core solution, or multi-core solution up to 8K@120fps, supporting AV1…
Overview
The VC9000D enables 8K decoding with a small silicon single-core solution, or multi-core solution up to 8K@120fps, supporting AV1, HEVC, H.264, AVS3, AVS2, VP9 video formats, JPEG, and legacy formats.
VeriSilicon's Hantro VC9000D is based on silicon-proven VeriSilicon Hantro technology that has been widely developed in use case like smartphones, tablets, ARVR, automotive, set-top boxes, DTV’s and video cameras worldwide.
Hantro VC9000D provides customers a silicon proven solution for integrating high-performance video capability into their chips.
Key features
- Video Format
- Unified architecture supports multiple formats
- AV1 main profile
- HEVC main10, main, and main still profiles
- H.264 up to constraint high10 profile
- VP9 profile 0 and profile 2 (10-bit)
- AVS3.0 main-10 bit profile
- AVS2.0 main/main10 profile
- JPEG
- Legacy formats: MPEG4, MPEG2, MPEG1, VC-1, H.263, VP8,VP7, VP6, RV10, RV9, RV8, AVS, AVS+, Sorenson, DIVX3/4/5/6,WebP
- High Performance and throughput
- Up to 8K@30fps performance with a single-core
- Up to 8K@120fps with multiple cores
- Up to 800 cycles BUS latency tolerance without performance impact
- Up to 256 streams in a single device
- Maximally offloads the system CPU
- Leading in PPA/Die Area for high performance solution
- Versatile inline post processing
- Bandwidth efficient solution by inline processing
- Multiple post processing outputs with different algorithm and formats
- High quality downscaling and programmable scaling kernel
- RGB formats for AI models
- Features for different application requirements
- Error concealment and robustness
- DDR efficiency and bandwidth saving
- Low-latency decoding
- Security solution support
- Flexible HW configuration
- HW configuration can be done for most video formats
- Typical 1-4 cores or more in a device
- PP different channels can have different features and restriction
- Data caching and burst shaping for the best DDR efficiency in specific system
- Bandwidth saving by reference frame & output frame compression
- Optional MMU and encryption

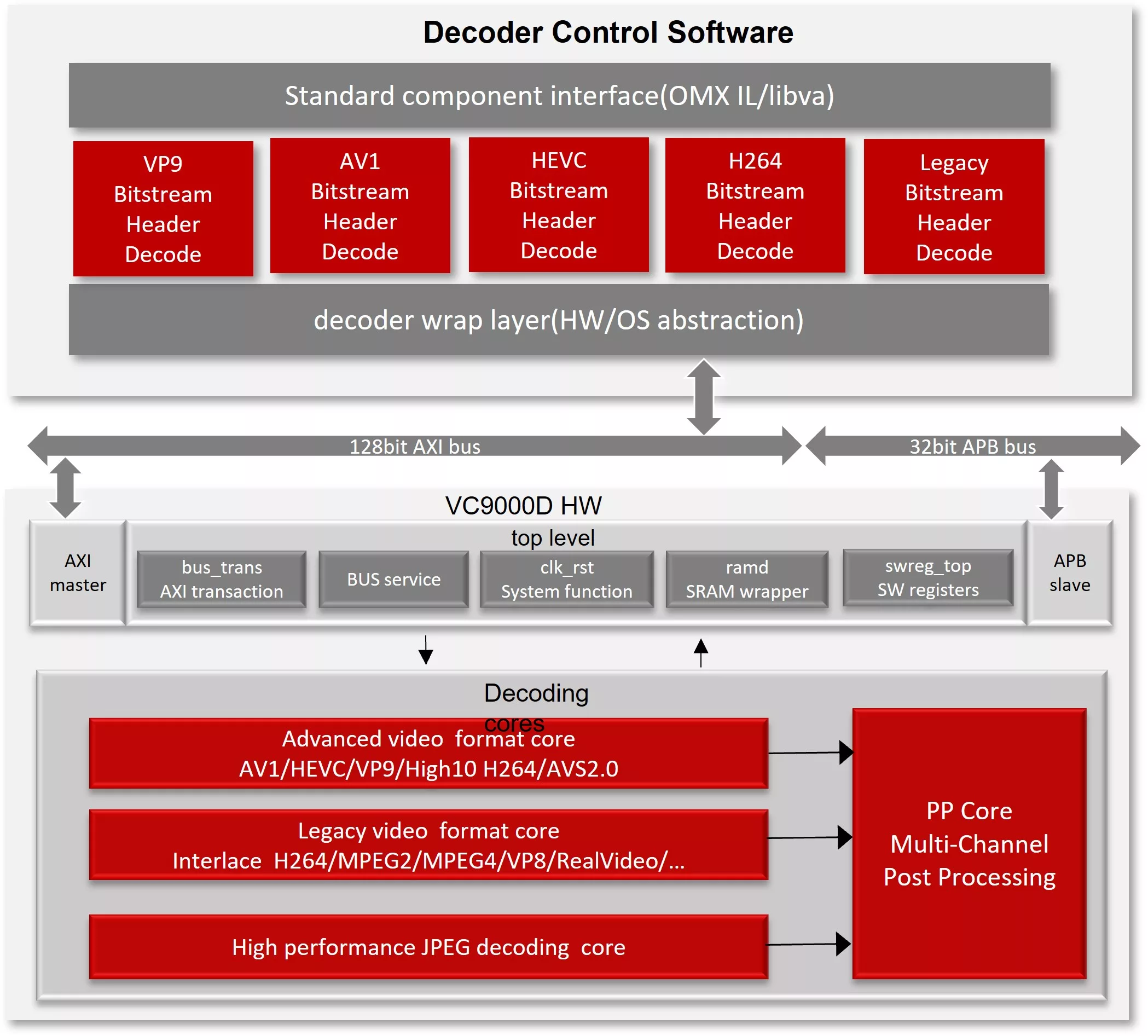

Block Diagram
VC9000D block diagram
Specifications
Identity
Part Number
VC9000D
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Compute
Codec Standard
AV1
Files
Note: some files may require an NDA depending on provider policy.
Provider
