USB 3.0 Device

The USB 3.0 Device IP core enables designers in the PC, mobile, consumer and communication markets to bring significant power and performance enhancements to the popular USB standard while offering backward compatibility with billions of USB-enabled devices currently in the market.

Arasan provides designers with a comprehensive, silicon-proven configurable digital USB 3.0 Device solution that conforms to the latest USB 3.0 specification. Support for both USB 3.0 and USB 2.0 functionality, the IP core provides the greatest flexibility for all applications. The Device IP core is designed to seamlessly integrate into any SoC design for an easy and cost effective solution.

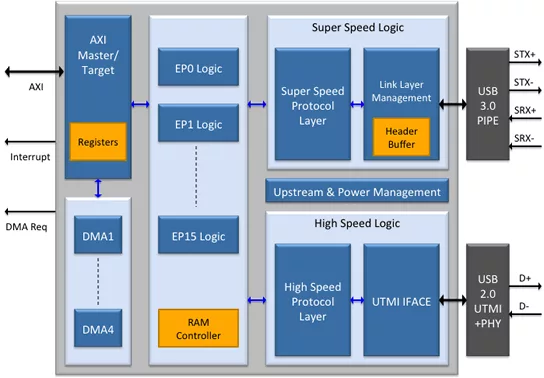

The USB 3.0 Device provides a dedicated dual simplex, routable packet architecture for USB3.0 and USB 2.0 packet transfers, with a disable option for power savings. The Arasan USB 3.0 IP supports all power management features as well as a dedicated link manager for each downstream port for increased efficiency. It includes a high performance scatter-gather DMA that can be configured to access any endpoint through registers. Optionally, it can interface with an external DMA controller.

The USB 3.0 Device IP core provides an UTMI/ULPI interface for USB 2.0 support and a PIPE interface for USB 3.0 support.

The USB 3.0 Device IP Core utilizes a flexible system bus architecture that can support AXI, AHB, OCP or any custom system interface needed for existing SoC development. The system bus can also be replaced with a dedicated FIFO interface to reduce bus bandwidth issues. The IP core includes RTL code, test scripts and a test environment for complete design verification.

• USB 3.0 Compliance
• SuperSpeed: 5 Gbit/s
• Hish Speed: 480Mbit/s
• Full Speed: 12Mbit/s
• 8/16/32 bit USB 3.0 PIPE interface
• 8/16 UTMI/ULPI interface
• Master DMA implementation for each endpoint with Scatter Gather support
• Optional slave DMA interface for external DMA implementations (auto mode)
• System bus Master/Target clock
• SuperSpeed Clock: 125/250/500 MHz
• High and Full Speed Module: 30/60 MHz
• Configurable up to 15 Tx and 15 Rx endpoints
• Configuration options: Bulk, control, isochronous, interrupt
• Dedicated control endpoint zero
• Configurable dual port RAM shared between endpoints
• Separate RAMs for upstream and downstream traffic
• All power states as specified in USB 3.0 specifications
• 32/64 bit AXI, AHB or OCP bus interface
• Seamless integration interface to Arasan PCI Express endpoint IP

• Fully compliant core
• Premier direct support from Arasan IP core designers
• Easy-to-use industry standard test environment
• Un-encrypted source code allows easy implementation
• Reuse Methodology Manual guidelines (RMM) compliant verilog code ensured

• RMM Compliant Synthesizable RTL design in Verilog
• Easy-to-use test environment
• Synthesis scripts
• Technical documents
