What is Generic ultra-speed FIR Filter?
Generic ultra-speed FIR Filter is a Filters Transforms IP core from Zipcores Electronic Systems Engineering S.L. listed on Semi IP Hub.
Vendor:
Zipcores Electronic Systems Engineering S.L.
Category:
Filters Transforms
Generic ultra-speed FIR Filter
FIR filter designed for very high sample rate applications up to 600 MHz.
Overview
FIR filter designed for very high sample rate applications up to 600 MHz. Organized as a systolic array, the filter is modular and scalable, permitting the user to specify large order filters without compromising maximum attainable clock-speed. Matlab®, FDAtool and Simulink® compatible.
Key features
- Synthesizable, technology independent VHDL Core
- Implemented as a systolic array for speed and scalability
- Configurable coefficients, data width and number of taps
- Symmetric arithmetic rounding limits DC-bias problems
- Output saturation or wrap modes
- Supports 550 MHz+ sample rates

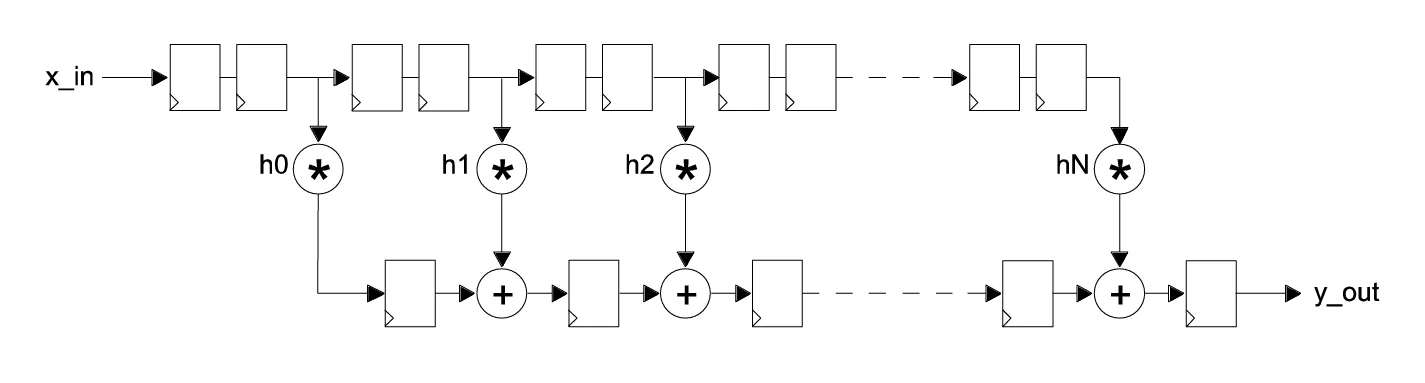

Block Diagram
FIR_NTAP block diagram
Applications
- Very high-speed filtering applications
- General purpose FIR filters with odd or even numbers of taps
- Filters with arbitrary sets of coefficients (e.g. non-symmetrical)
Specifications
Identity
Part Number
FIR_NTAP
Vendor
Zipcores Electronic Systems Engineering S.L.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
