Vendor: Chipus Microelectronics Category: ADC

Ultra Low Power 8-bit ADC - Ultra Low Voltage (1V), Ultra Low Power (850nA) - LFoundry 0.15µm

This macro-cell is a general purpose, ultra low power, 8-bit, time-based Analog-to-Digital Converter (ADC) core designed for LFou…

8 Bit LFoundry 150nm View all specifications

Overview

This macro-cell is a general purpose, ultra low power, 8-bit, time-based Analog-to-Digital Converter (ADC) core designed for LFoundry 0.15μm LF150 CMOS technology STD (Standard) and LP (Low Power) process.

The circuit is ideal for general purpose/auxiliary low frequency measurements (such as power supply voltage monitor) in applications in which ultra low power consumption is mandatory.

The core is easily retargeted to any other CMOS technology with R-poly devices.

Key features

  • General purpose time-based ADC
  • 8-bit resolution
  • 50 SPS speed
  • Ultra low power (850nA) in active mode
  • Flexible supply voltage: 1.0­-3.6V
  • Enable control
  • Indicative area: 0.04mm2

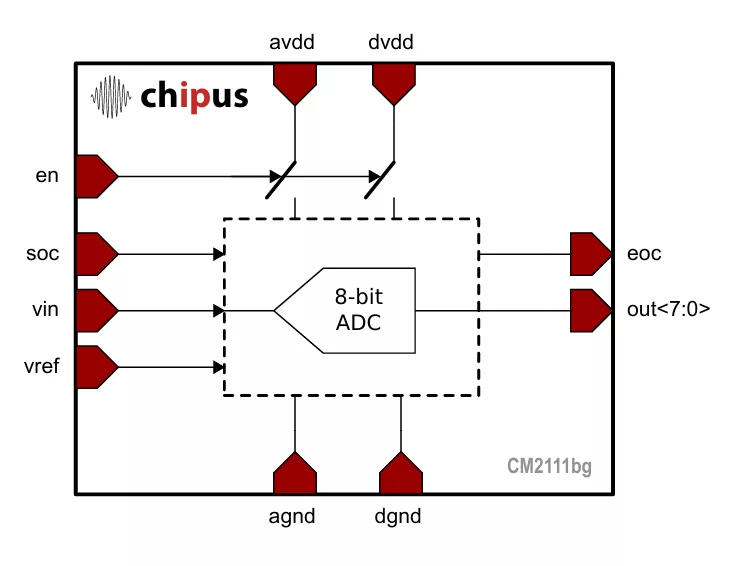

Block Diagram

CM2111bg block diagram

Applications

  • Housekeeping
  • Battery powered equipment
  • Energy harvesting ICs
  • Hearing aids

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
LFoundry 150nm 150nm 1500 nm —

Specifications

Identity

Part Number
CM2111bg
Vendor
Chipus Microelectronics
Type
Silicon IP

Analog

Resolution bits
8 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
