ULP Bandgap Reference - Ultra Low Current (150nA) Silterra 0.18 um

This macro-cell is an ultra low power voltage reference generator core designed for SilTerra 0.18µm CL180G CMOS technology.

Silterra 180nm G View all specifications

Overview

This macro-cell is an ultra low power voltage reference generator core designed for SilTerra 0.18µm CL180G CMOS technology. The core is ideal as a general purpose reference voltage in applications where power consumption is critical.

The circuit generates an unbuffered 1180mV, temperature compensated bandgap voltage reference (47ppm/ C). Internal start-up circuit allows that the reference voltage is available as soon as the power supply ramps up, so that no enable/disable function is necessary to start-up the circuit.

The core is easily re-targeted to any other CMOS technology.

Key features

  • Ultra low power (ULP) bandgap reference
  • Vref =1.18V ±3.5% (without trimming)
  • Current consumption below 150nA in active mode
  • Supply voltage: 1.4–2.0V
  • Automatic start-up as soons as power supply starts
  • Indicative area: 0.004mm2

Block Diagram

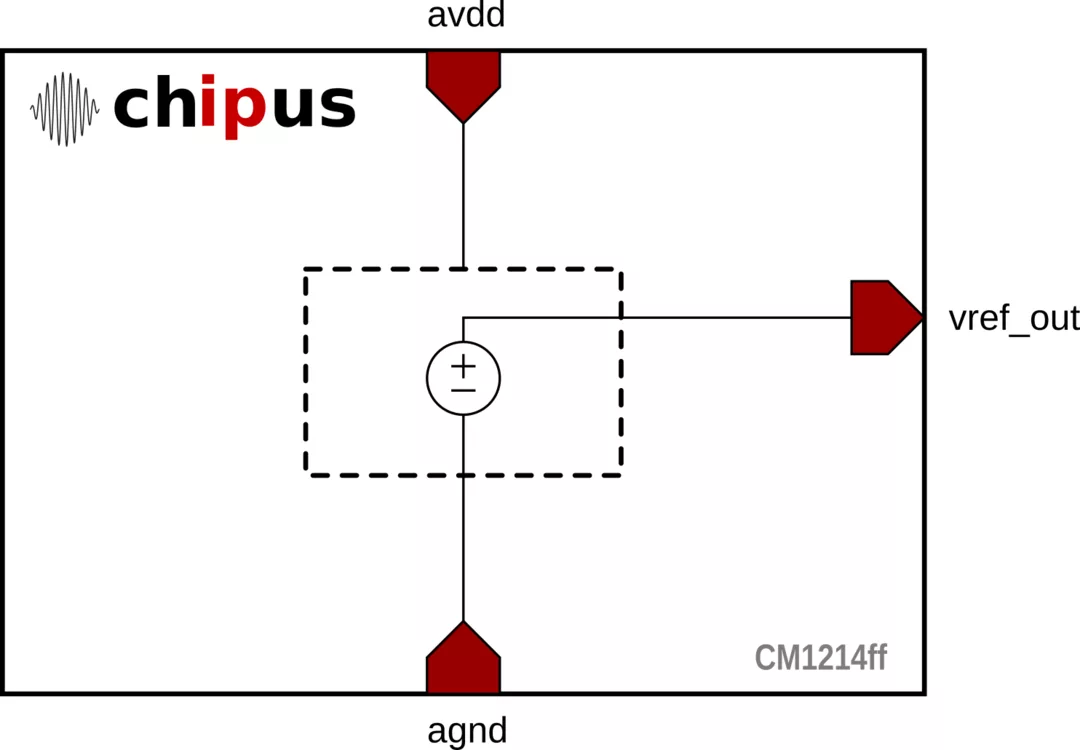

CM1214ff block diagram

Applications

  • Passive/active RFID tag ICs
  • Battery powered equipment
  • Energy Harvesting ICs
  • Hearing Aids

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
Silterra 180nm G —

Specifications

Identity

Part Number
CM1214ff
Vendor
Chipus Microelectronics
Type
Silicon IP

Files

Product Sheet Download
