Vendor: Brite Semiconductor Category: Sub-GHz ISM

Sub-1GHz (699MHz-960MHz) fully integrated transceiver

The B40NLL_NBIOT_TRX is a sub-1GHz (699MHz-960MHz) fully integrated transceiver specially designed for Narrow-band IOT applicatio…

Contact Provider Request Datasheet

Overview

The B40NLL_NBIOT_TRX is a sub-1GHz (699MHz-960MHz) fully integrated transceiver specially designed for Narrow-band IOT applications. The device is comprised of RF frontend, Frac-N frequency synthesizer, LO chains, and analog baseband blocks. The receive path (RX) has high dynamic range and sensitivity. A zero-IF TX generates low EVM signals to drive the external power amplifier. The fully integrated Frac-N frequency synthesizer generates required low-phase-noise LO signals for TX and RX mixers.

B40NLL_NBIOT_TRX is developed with 40nm Low Leakage RF 1P7M process.

The supply voltage ranges from 2.8V to 3.6V. A 38.4MHz temperature controlled oscillator (TCXO) is used as a reference clock.

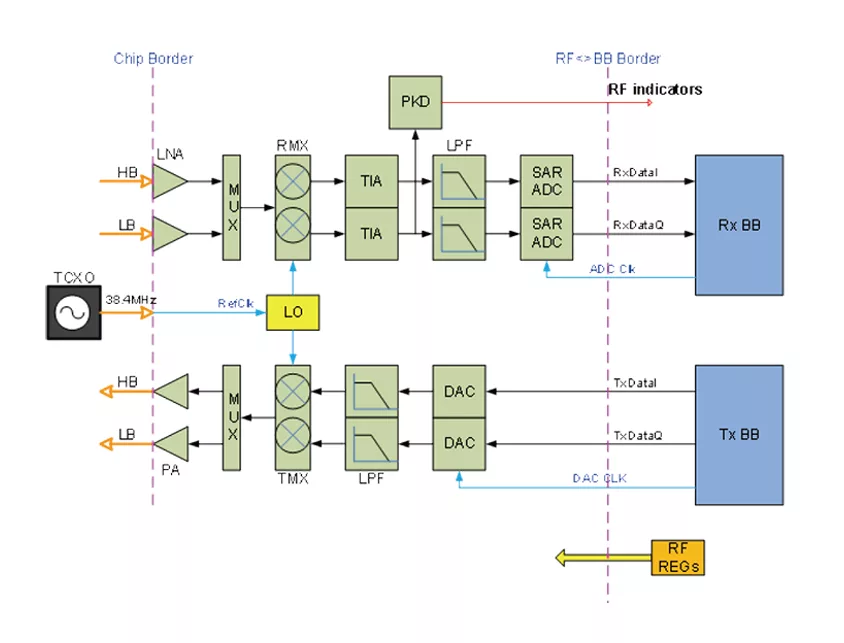

Block Diagram

YouRF-NB-IoT block diagram

Specifications

Identity

Part Number
YouRF-NB-IoT
Vendor
Brite Semiconductor
Type
Silicon IP

Provider

Brite Semiconductor
HQ: China
Brite Semiconductor is a leading custom ASIC and IP provider, and committed to provide flexible one-stop services from architecture design to chip delivery with high value and differentiated solutions. Brite Semiconductor provides comprehensive silicon proven “YOU” IP portfolio and YouSiP (Silicon-Platform) solution. YouSiP solution provides a prototype design reference for system house and fabless to speed up the time-to-market. Founded in 2008, Brite Semiconductor is headquartered in Shanghai, China.
