What is Sigma-Delta ADC?
Sigma-Delta ADC is a ADC IP core from InPsy listed on Semi IP Hub.
Vendor:
InPsy
Category:
ADC
Sigma-Delta ADC
The 100 dB Sigma-Delta Analog-to-Digital Converter (ADC) is a high-performance solution designed for applications requiring excep…
Overview
The 100 dB Sigma-Delta Analog-to-Digital Converter (ADC) is a high-performance solution designed for applications requiring exceptionally high resolution and dynamic range. This ADC employs a sigma-delta modulation technique, making it ideal for converting analog signals to digital with outstanding accuracy and noise performance, suitable for precision measurement and audio applications.
Key features
- Dynamic Range: 100 dB
- Resolution: High-resolution digital output
- Sigma-Delta Modulation: Advanced noise shaping and low distortion
- Power Consumption: Optimized for low power, typically in the milliwatt range
- Linearity: Excellent linearity across the input range
- Calibration: Built-in self-calibration features
- Input Bandwidth: Wide bandwidth to support high-frequency signals
- Operating Voltage: Compatible with a wide range of supply voltage
- Operating Temperature Range: -40°C to +125°C
- Output Format: Digital output, compatible with standard interfaces

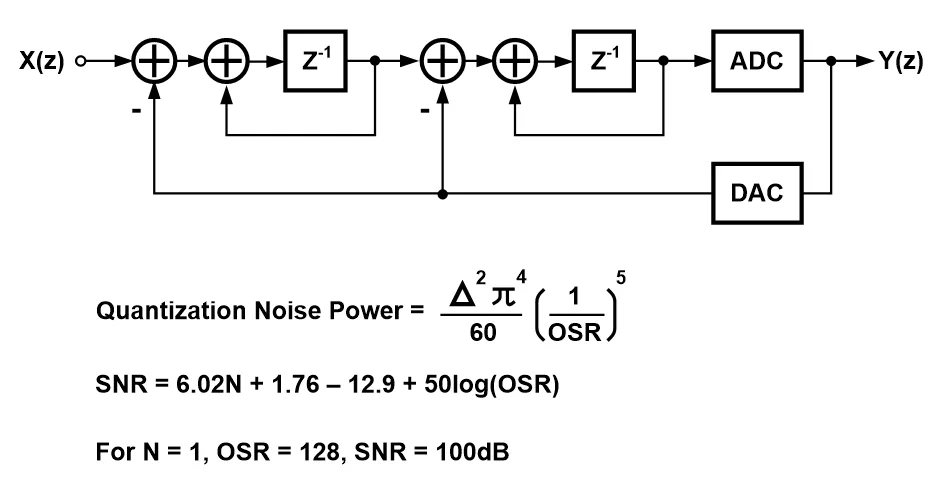

Block Diagram
Sigma-Delta ADC block diagram
Specifications
Identity
Part Number
Sigma-Delta ADC
Vendor
InPsy
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Taiwan (R.O.C.)
Frequently asked questions about ADC IP cores
How should engineers evaluate this ADC?
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this ADC IP.
Can this semiconductor IP be compared with similar products?
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
