Vendor: Ocean Logic Pty Ltd Category: Hash / MAC

SHA-256 Processor

This core is a fully compliant implementation of the Message Digest Algorithm SHA-256.

Contact Provider Request Datasheet
SHA2 (SHA-256) View all specifications

Overview

This core is a fully compliant implementation of the Message Digest Algorithm SHA-256. It computes a 256-bit message digest for messages of up to (264 – 1) bits. Simple, fully synchronous design with low gate count.

The OL_SHA256 core is a fully compliant hardware implementation of the SHA-256 algorithm, suitable for a variety of applications.

The SHA-256 algorithm is an upgraded version of the SHA-1 algorithm and it offers improved security. It operates on message blocks of 512 bits for which a 256-bit (8 x 32-bit words) message digest (hash value) is produced. Corresponding 32-bit words of the hash values from consecutive message blocks are added to each other to form the message of the whole message.

Key features

  • FIPS 180-2 compliant.
  • Suitable for data authentication applications.
  • Fully synchronous design.
  • Available as fully functional and synthesizable VHDL or Verilog soft-core.
  • FPGA netlist available for various devices.

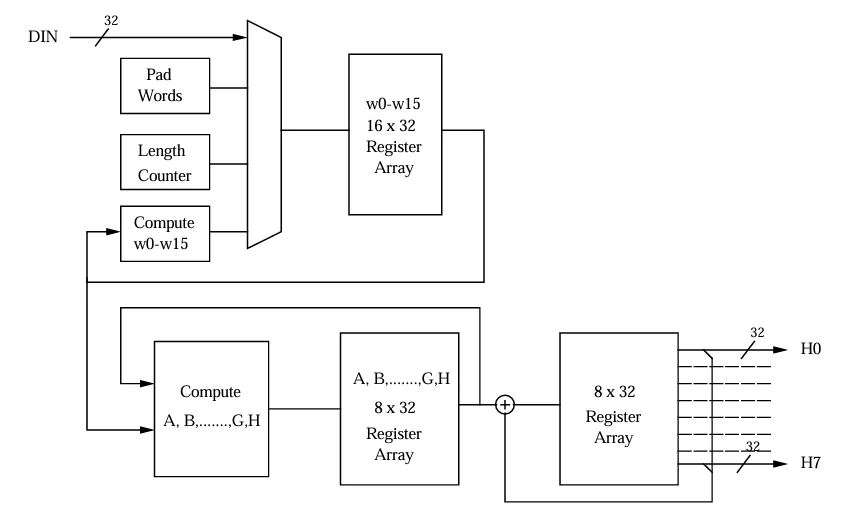

Block Diagram

OL_SHA256 block diagram

Benefits

  • FIPS 180-2 compliant.
  • Suitable for data authentication applications.
  • Fully synchronous design.
  • Available as fully functional and synthesizable VHDL or Verilog soft-core.
  • FPGA netlist available for various devices.

Applications

  • Electronic Funds Transfer.
  • Authenticated Electronic data transfer.
  • Encrypted data storage.

Specifications

Identity

Part Number
OL_SHA256
Vendor
Ocean Logic Pty Ltd
Type
Silicon IP

Security

Crypto Algorithm
SHA2 (SHA-256)

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Ocean Logic Pty Ltd
HQ: Australia
Contact Ocean Logic Pty Ltd
