8530 - Serial Communication Controller

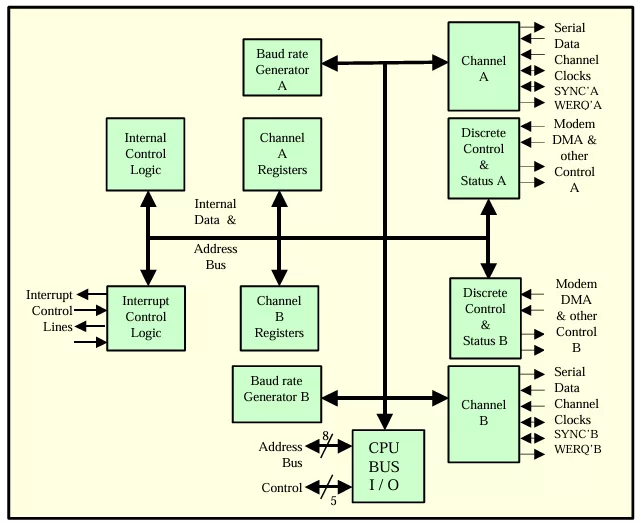

The SI85SCC30 SCC is a dual channel, multiprotocol data communications peripheral. It supports virtually any serial data transfer application with important functions like baud rate generator, digital phase locked loop on the cell, it makes a self contained controller. In proportion to its functionalities the pin count is very less

Synchronous / Isosynchronous data rates :

• Upto 1 / 4 of the PCLK (2.5 Mbits / sec) maximum data rate with 10 MHz PCLK using external phase locked loop.
• Upto 625 Kbit / sec with a 10 MHz clock rate. Upto 500 Kbit / sec with a 8MHz clock rate (FM encoding using DPLL).
• Upto 372.5 Kbit / sec with a 10 MHz clock rate. Upto 250 Kbit / sec with a 8 MHz clock rate (NRZI encoding using DPLL).

Asynchronous capabilities :

• 5, 6, 7 or 8 bits per character.
• 1, 1 - 1 / 2 or 2 stop bits.
• Odd or Even parity.
• Times 1, 16, 32 or 64 clock modes.
• Spike rejection mechanism, break generation and detection and also parity overrun and framing error detection.

Synchronous capabilities :

• Internal or external synchronization.
• 5, 6, 7 or 8 bits per character with 1 or 2 sync characters in separate registers.
• Automatic CRC generation (CRC - 16 / SDLC - CRC) generation / detection

SDLC / HDLC Capabilities :

• 5, 6, 7 or 8 bits per character.
• Abort sequence generation and checking.
• Automatic zero insertion/deletion and detection.
• Automatic flag insertion between messages.
• Address field recognition.
• SDLC Loop - mode with EOP recognition / loop entry and exit.
• CRC - 16 / SDLC - CRC generation/detection.

• Designed for use with 8 and 16 bit microprocessors.
• Reliable operation with 25 Mhz clock.
• On - chip crystal clock oscillator, DPLL and Baud Rate Generator.
• Two Independent full - duplex channels.
• Receiver data registers quadruply buffered.
• NRZ, NRZI, FM encoding / decoding.
• Fully synthesizable Register Transfer Level (RTL) VHDL
