Vendor:
Truechip Solutions
Category:
Video Transport
SDI Verification IP
Overview
Truechip's SDI Verification IP offers a streamlined and efficient solution for verifying SDI (Serial Digital Interface) components within an IP or SoC. Truechip's VIP fully adheres to the SMPTE SDI Specifications (ST 259, ST 292, ST 424, ST 2081, ST 2082) covering SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI. The VIP is lightweight, plug-and-play, and ensures minimum impact on design cycle time
Key features
- Supports all SDI standards: ST 259 (SD-SDI), ST 292 (HD-SDI), ST 424 (3G-SDI), ST 2081 (6G-SDI), ST 2082 (12G-SDI).
- Supports single-link, dual-link, and quad-link configurations.
- Supports 4:2:2, 4:4:4, 4:2:0, 4:4:4:4 ,4:2:2:4 and 4:2:0:4 image sampling formats.
- Supports Y'Cb'Cr', RGB, and I'CT'CP' color encoding.
- Payload ID insertion and checking as per ST 352.
- CRC generation and verification.
- HANC/VANC ancillary data support( ST 291-1) including audio packets. (4 to 32 audio channels supported)
- Assertions for line numbering and TRS sequence alignment.
- Supports progressive and interlaced image formats.
- Provides functional coverage for complete SDI feature set.
- Enables runtime debug through scrambling/descrambling visibility.
- Supports 24 bit digital audio format as per ST 299-2:2010
- Supports block wise checkers within Rx and Tx agents.

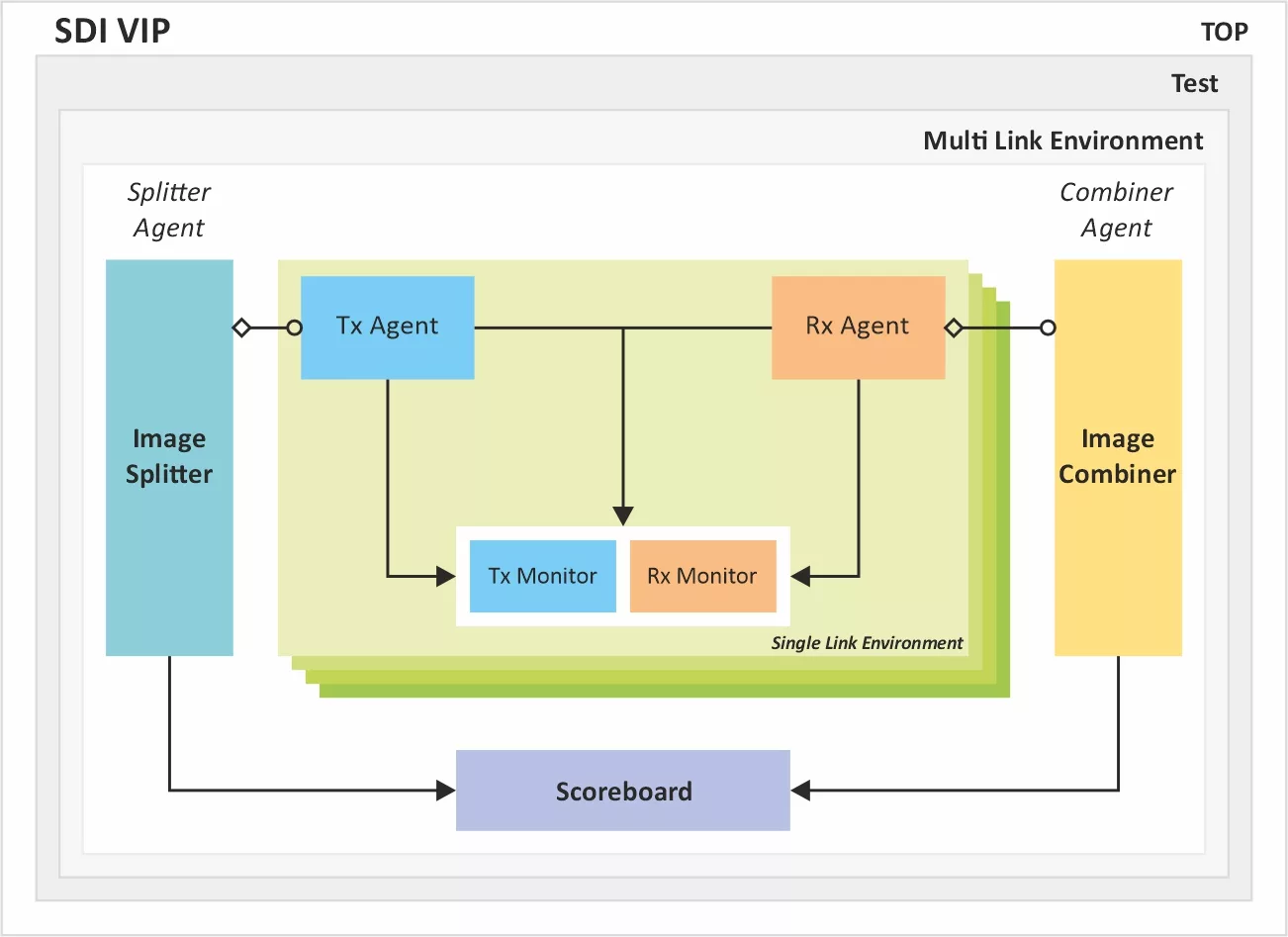

Block Diagram
Click to open fullscreen
Benefits
- Available in native SystemVerilog (UVM/OVM /VMM) and Verilog.
- Unique development methodology to ensure highest levels of quality.
- Availability of various Regression Test Suites.
- 24X5 customer support.
- Unique and customizable licensing models.
- Exhaustive set of assertions and cover points with connectivity example for all the components.
- Consistency of interface, installation, operation and documentation across all our VIPs.
- Provide complete solution and easy integration in IP and SoC environment.
What’s Included?
- SDI Tx/Rx/BFM/Agent
- Testbench Configurations
- Test Suite (Available in Source code)
- Basic and Directed Protocol Tests
- Random Tests & Error Scenario Tests
- Assertions & Cover Point Tests
- Integration Guide, User Manual and Release Notes
Specifications
Identity
Part Number
SMPTE SDI
Vendor
Truechip Solutions
Type
Verification IP
