SD Memory Slave Controller
The SD Memory Slave controller is designed to reside within SD Memory card.
Overview
The SD Memory Slave controller is designed to reside within SD Memory card. This slave controller provides simple and general-purpose 8-bit interface to user application. This controller handles the SD bus protocol on the card interface side and forwards only the data transfer requests to user logic interface.
.
.
Key features
- Compliant with SD Physical Specification Version 2.00
- Supports 1-bit and 4-bit SD Mode
- Supports Standard and High Capacity operations
- Supports Default and High Speed Modes of operation
- Supports all mandatory slave registers set
- CID Register fields are configurable through header file
- Supports only Standard command set
- Supports all mandatory SD Command Classes
- CRC7 checking/generation for Command/Response
- CRC16 checking/generation for Data transfer
- Support Maximum block length of 512 bytes
- Supports Single and Multiple block read and write data transfer
- Supports Partial and Misalign Block length option
- SD Memory only implementation
- IP provides simple and general-purpose 8-bit interface to user application
- Combo card features are not supported
- SPI Mode is not supported

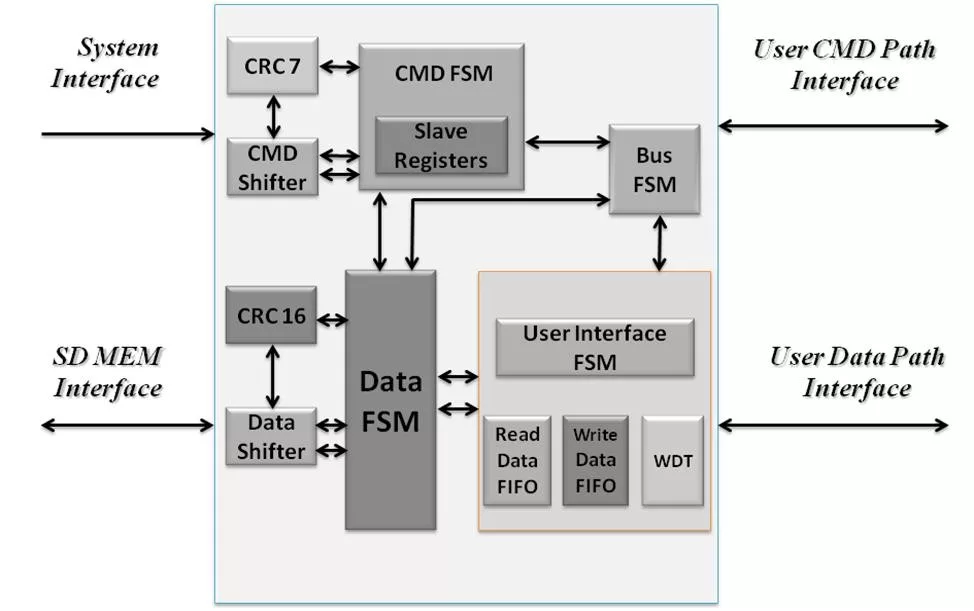

Block Diagram
SD Memory Slave Controller block diagram
Benefits
- Helps to emulate the SD card in test card application
- Can be used as bridge core between SD memory to custom application
Applications
- Portable devices: Cellphone, PDA and etc.
- SOC design integration with SD memory card
What’s Included?
- ...
Specifications
Identity
Part Number
SD Memory Slave Controller
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
