Overview
The SD Express Card Verification IP provides an effective & efficient way to verify the components interfacing with SD Express Interface of an ASIC/FPGA or SoC.
The SD Express Card VIP is fully compliant with Standard SD card v7.00 specifications from SD Organization. The VIP is a light weight VIP with easy plug-and-play interface so that there is not hit on the design time and simulation time.
Key features
- Compliant to SD Specification v7.00
- SD Express card supports NVMe protocol over PCIe Interface
- Supports SD and PCIe Mode
- Supports PCIe Gen3 Single lane with Dual simplex point to point serial connection
- Supports 128/130 encoding with two differential I/O of 8Gpbs transfer, producing upto 985MB/s for each direction
- Support for Hot plug-in/out
- Support NVM-Express over PCIe interface
- Supports Host Memory Buffer by MVMe
- Supports NVMe with multi queues and no locking mechanism
- Supports all Capacity of Memory i.e.
- Standard Capacity SD Memory Card (SDSC)
- High Capacity SD Memory Card (SDHC)
- Extended Capacity SD Memory Card (SDXC)
- Ultra Capacity SD Memory Card (SDUC)
- All UHS1 modes – SDR50/SDR104/DDR50 supported for backward compatibility
- Support for all types of speed classes (SC,UHS SC and VSC)
- Support for Application Performance Classes
- Supports command queuing
- Support for Self Maintenance and Cache
- Support for FULE and Discard
- Support for LVS and Power Management
- Support for Extension register
- Supports Pseudo Initialization mode
- Supports Password protection (card lock /unlock) through SD mode
- Supports Card internal Write protect using SD mode
- Supports CPRM Security through SD mode
- Supports PCIe Linkup Mode
- Supports card ownership protection
- Supports address extension command
- Support for video class specification
- Protocol checker that shoots errors in case of violations. Some of the errors are Out of range error, CRC error, Misalignment error , Invalid queue error etc
- Provides full control to user to enable/disable various types of messages
- Supports full timing models or bus functional models
- Supports Dynamic as well as static Error injection scenarios
- On the fly protocol checking using protocol check function, static and dynamic assertions
- Provides a comprehensive user API (callbacks) in BFMs
- Supports advanced System Verilog features like constrained random testing
- Built in Coverage analysis.
- Graphical Analyzer to show transactions for easy debugging.
Block Diagram

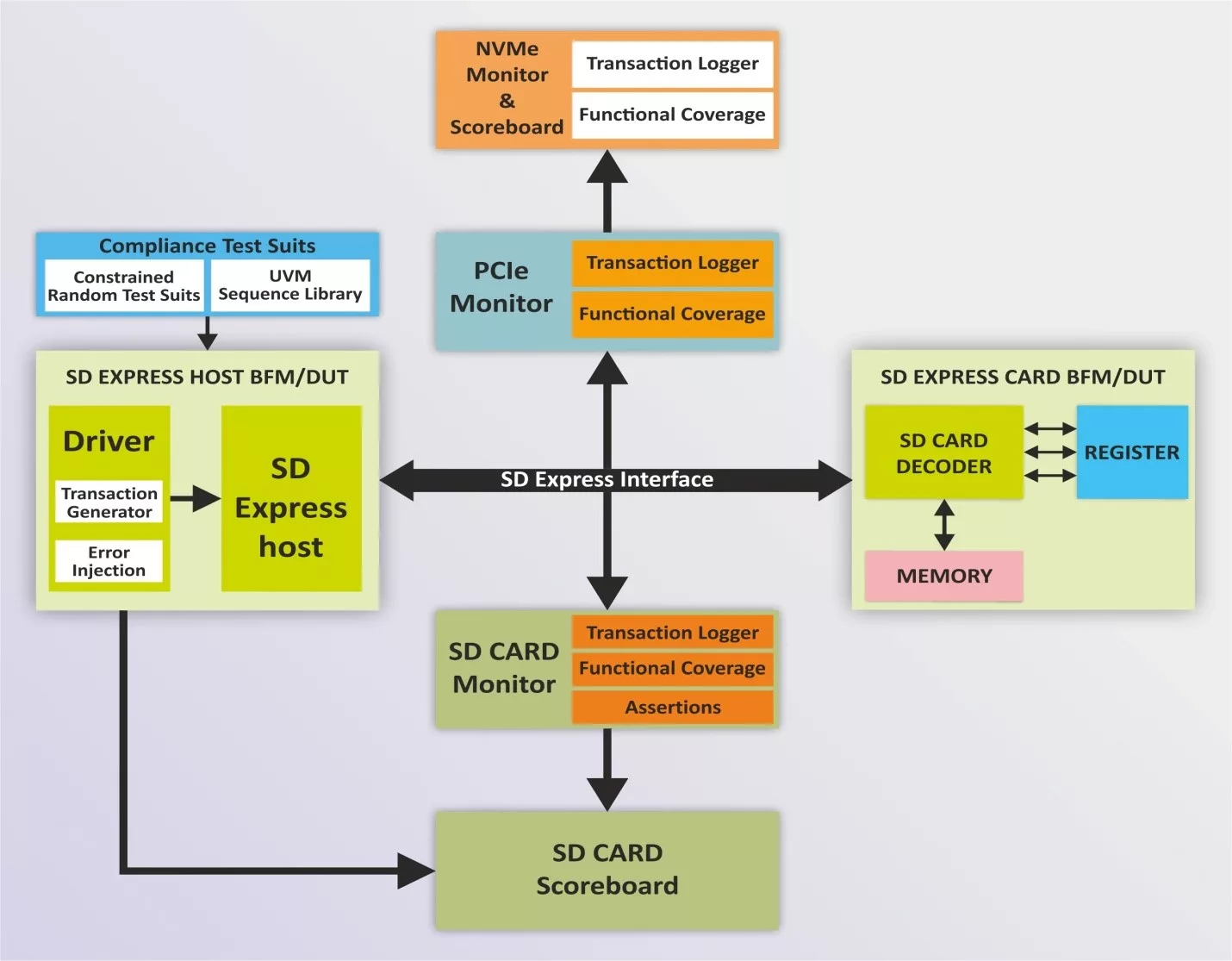

SD Express/SD8 block diagram
Benefits
- Available in native SystemVerilog (UVM/OVM/VMM) and verilog
- Unique development methodology to ensure highest levels of quality
- Availability of various Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and cover points with connectivity example for all the components
- Consistency of interface, installation, operation and documentation across the VIP
- Provide complete solution and easy integration in IP and SoC environment
What’s Included?
- SD Express Memory Card Model
- SD Express Monitor & Scoreboard
- SD Express Host Model
- Test-Bench Configurations
- Test Suite (Available in Source code)
- Basic Protocol Tests
- Directed & Random Tests
- Assertions & Cover Point Tests
- Error injection Scenarios Tests
- Integration Guide, User Manual and Release Notes
- GUI analyzer to view simulation packet flow.
Specifications
Identity
Part Number
SD Express/SD8
Vendor
Truechip Solutions
Type
Verification IP
Files
