Vendor: BTREE Co,LTD Category: Image Conversion

Scaler IP - MSCALE

BTREE’s MSCALE enlarges the input video to fit the panel size.

Overview

BTREE’s MSCALE enlarges the input video to fit the panel size. Bi-Linear interpolation is the basic algorithm, and also various methods such as sharpness control are used in the local area to make the best image

Key features

  • Input Resolution
    • Min Input Resolution : 720 x 1280
  • Output Resolution : Up to QHD
  • Scaling Ratio
    • Up Scale : x 4.0
  • 4-BUS of Interface, 3 Line Memory
  • 8 bit / 10 bit of Bit-Processing
  • Supports Command and Video Mode
  • Uses Bi-Linear Interpolation

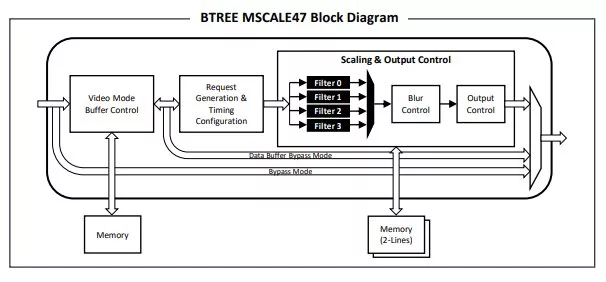

Block Diagram

Benefits

  • Silicon Proven Several Times for Mobile Phone
  • Use Small Gate Counts
  • Optimized for Power Saving

What’s Included?

  • IP Specification
  • Encrypted RTL Source Code IP Core
  • Comprehensive Integration Guide
  • Technical Support and Maintenance Updates
  • IP Customization and Integration Services Available
  • Multi-Project Licenses Available

Specifications

Identity

Part Number
Scaler IP - MSCALE
Vendor
BTREE Co,LTD
Type
Silicon IP

Videos

BTREE Up Scaler IP
BTREE’s MSCALE enlarges the input video to fit the panel size. Bi-Linear interpolation is the basic algorithm, and also various methods such as sharpness control are used in the local area to make the best image.

Files

Note: some files may require an NDA depending on provider policy.

Provider

HQ: Republic of Korea

Frequently asked questions about image conversion IP cores

What is Scaler IP - MSCALE?

Scaler IP - MSCALE is a Image Conversion IP core from BTREE Co,LTD listed on Semi IP Hub.

How should engineers evaluate this Image Conversion?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Image Conversion IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
