Overview
This IP core complies with the latest JPEG standard, which was established by ISO/IEC JTC 1/SC29/WG1 18181 in 2022/1 and is characterized by high compression and high quality.
A new still image coding standard established in “ISO/IEC 18181” in 2022/1.
- Compared to existing JPEG, it has higher compression and quality of still images.
- Wide color gamut, HDR compatible.
- Equipped with lossless JPEG transcoding (existing JPEG ⇔ JPEG XL) function.
- Optimized for responsive web design.
Three Key Advantages of “KJN-XL1_ENC”
1. High compression ⇒ Up to 47.6% Data Size Reduction
| Quality |
JPEG Compression ratio |
JPEG XL Compression ratio |
Compared to JPEG |
| 85 |
10.1% |
6.7% |
▲33.7% |
| 97 |
26.3% |
15.8% |
▲39.9% |
| 100 |
48.1% |
25.2% |
▲47.6% |
Average value of JIS standard images (16 types of natural images) Target Image：2560x2048 sRGB 8bit
2. HDR support ⇒ Supports compression and decompression without sacrificing reality expression

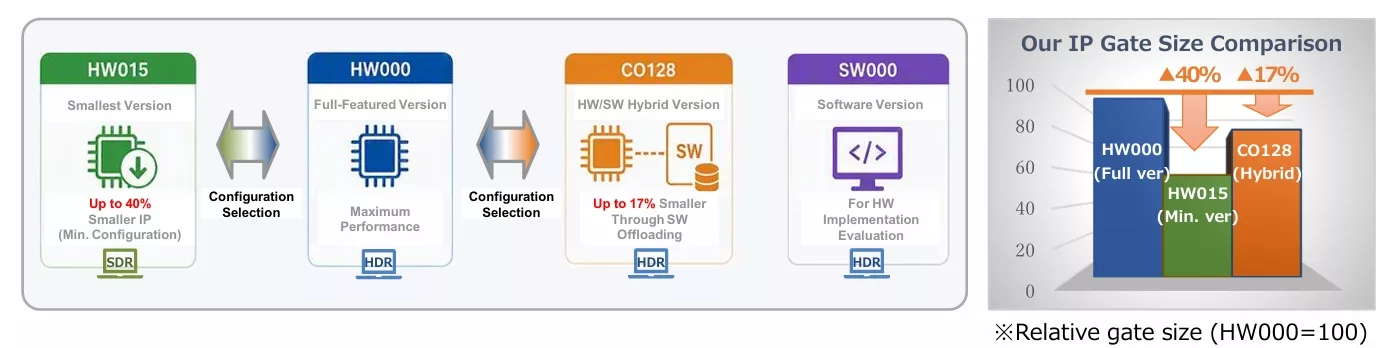

3. Flexible IP Configuration ⇒ Up to 40% Gate Size Smaller
KJN-XL1_ENC Specifications
| Item |
Specifications |
| Data Rate |
1 Sample / CLK |
| Image Bit Depth |
32bit (single-precision floating point)
16bit (half-precision floating point)
|
| Color Format |
LinearRGB※1 |
| CPU Interface |
AMBA3 APB |
| Image and Code Interface |
AMBA4 AXI (Master) |
※1 Linear RGB with no gamma correction applied.
