SATA 3 Host Controller on ARRIA V FPGA

The LDS SATA 3 HOST AR5GX IP incorporates the Transport layer, the Link layer, the PHY layer and the Rate Macth FIFO on a ALTERA …

Overview

The LDS SATA 3 HOST AR5GX IP incorporates the Transport layer, the Link layer, the PHY layer and the Rate Macth FIFO on a ALTERA Stratix IV GX FPGA. The LDS SATA 3 HOST AR5GX IP is compliant with Serial ATA III specification and signaling rate is 6Gbps and scalable 3Gbs. The LDS SATA 3 HOST AR5GX X IP is fully synchronous with system frequency (Clock_sys) at 150MHz in case of 6Gbps speed selection and 75MHz in case of 3Gbs speed configuration. The VHDL source code format is available for ease of customization. The customization can be done by Logic Design Solutions and DO254 documentation is available on request.

Key features

  • Rate Match FIFO
    • Manage SATA reference frequency difference between the FPGA and the Disk
  • Physical Layer features
    • Detect OOB and COMWAKE
    • Detect the K28.5 comma character and provide a 32 bit parallel output
    • Power management mode handled by state machine (shared between Phy and Link layer)
    • Provides error indication to upper layers
    • 8b/10b encoding and decoding
    • Fixed Speed 6Gbs or 3Gbs
  • Link Layer features
    • Scrambling of tx data and descrambling of rx data
    • CRC 32 calculation and check
    • Report transmission status and error to Transport Layer
    • Enable BIST Retimed loopback and pattern generation modes
    • Auto inserted hold primitive to avoid FIFO overflow and underflow
    • Partial and slumber power management modes
    • The interface between the link layer and the transport layer is 32-bit wide
  • Transport Layer features
    • 48-bits sector address
    • Programmed IO (PIO) and DMA modes
    • Support BIST FIS transmission and reception
    • Automatic error FIS retry capability
    • Implement Shadow Registers and SATA SuperSet registers
    • Simple synchronous CPU and DMA Interface for data transfers including DMA hold-off capability
    • DMA interface can be connected easily to memory space or FIFOs
    • Support DMA Abort primitive
    • 128-Word Ingress and Egress FIFO between Transport and Link Layer
    • NCQ Support

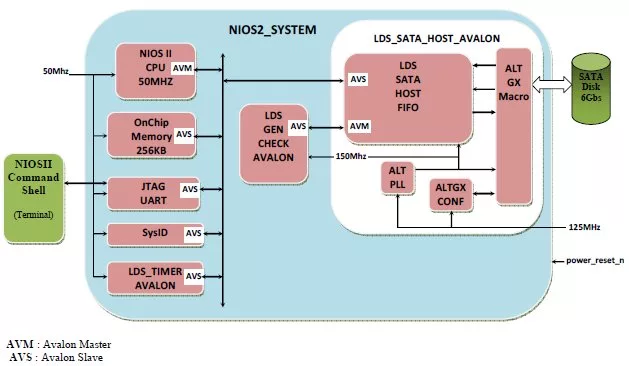

Block Diagram

LDS SATA 3 HOST AR5GX block diagram

Specifications

Identity

Part Number
LDS SATA 3 HOST AR5GX
Vendor
Logic Design Solutions
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
