RISC-V-based SoC template
IOb-SoC is a RISC-V SoC template written in Verilog, which users can download for free, modify, simulate and implement in FPGA or…
Overview
IOb-SoC is a RISC-V SoC template written in Verilog, which users can download for free, modify, simulate and implement in FPGA or ASIC. It supports stand-alone and booting modes, and can use internal RAM or an external DDR controller via L1/L2 cache systems.
Key features
- Based on the picorv32 RISC-V CPU
- (Re)programmable via UART
- Runs from internal RAM or external AXI4 memory (DDR or other)
- L1 instruction and data caches
- UART

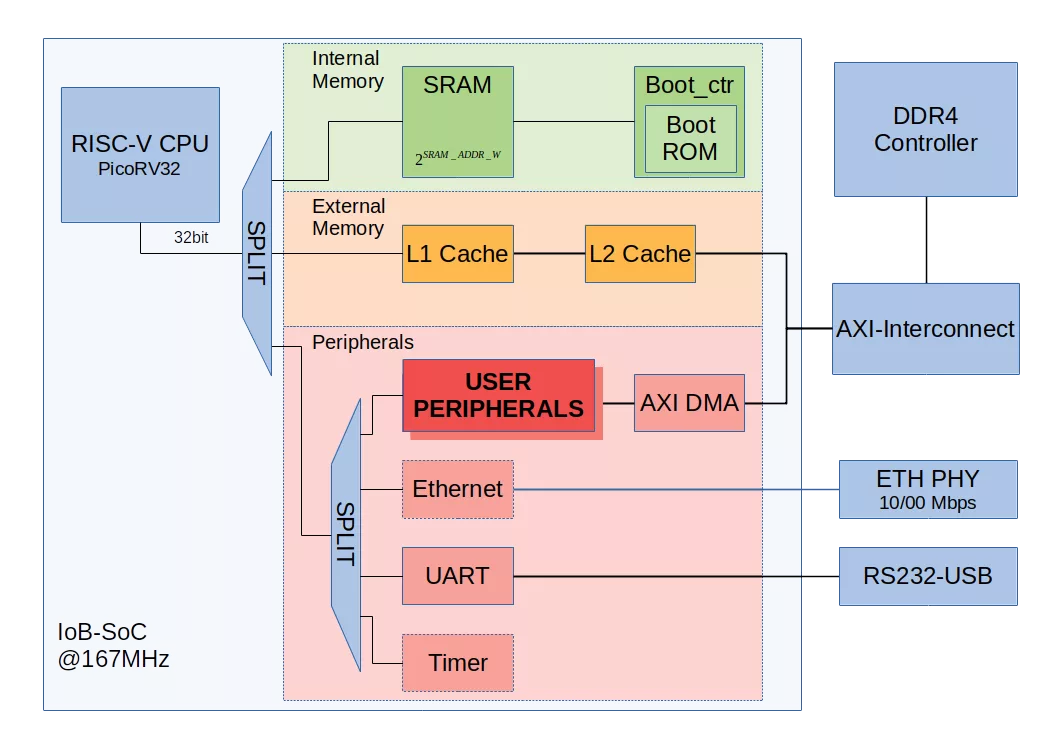

Block Diagram
IOb-SoC block diagram
Benefits
- With IOb-SoC you can quickly and inexpensively build a complex embedded SoC
- Very small size and power consumption
Applications
- All kinds of low-cost low-power embedded systems
What’s Included?
- This IP can be downloaded for free from https://github.com/IObundle/iob-soc
- Premium features/services available on-demand:
- Higher performance CPU
- Custom hardware accelerators
- Custom peripherals
- Custom software
Specifications
Identity
Part Number
IOb-SoC
Vendor
IObundle, Lda
Type
Silicon IP
Compute
CPU Architecture
RISC-V
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Portugal
