Pulse Per Second Master (PPS) core

NetTimeLogic’s PPS Master Clock is a full hardware (FPGA) only implementation of a synchronization core able to synchronize other…

Contact Provider Request Datasheet

Overview

NetTimeLogic’s PPS Master Clock is a full hardware (FPGA) only implementation of a synchronization core able to synchronize other nodes to a Pulse per Second output based on a reference time. The whole algorithms and calculations are implemented in the core, no CPU is required. This allows running PPS synchronization completely independent and standalone from the user application. The core can be configured either by signals or by an AXI4Light-Slave Register interface.

All calculations and corrections are implemented completely in HW.

Key features

  • PPS Master Clock
  • Output delay compensation
  • PPS duty cycle adjustment, width can be set via register
  • AXI4 Light register set or static configuration
  • PPS resolution with 50 MHz system clock: 10ns

Block Diagram

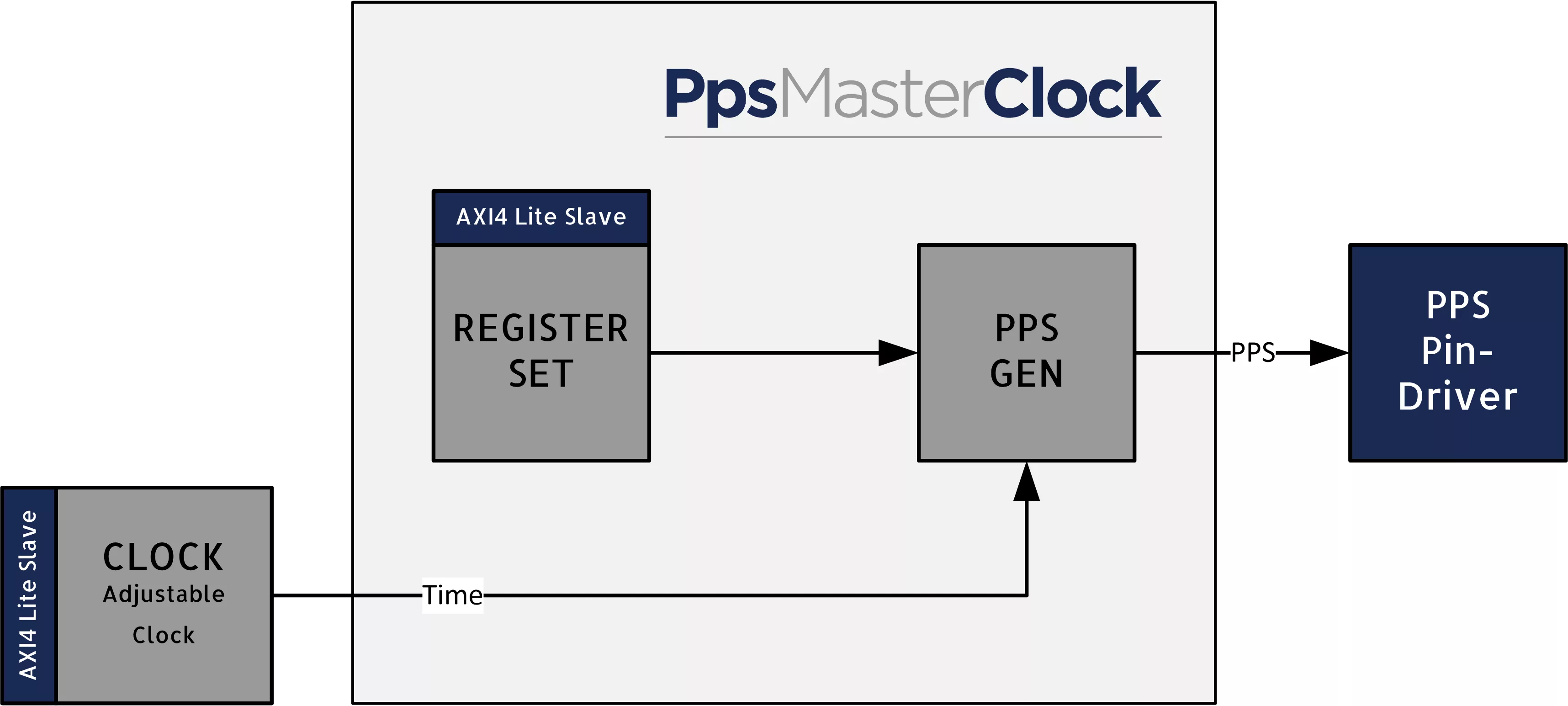

NTL_PPS_MASTER block diagram

Benefits

  • Coprocessor handling PPS synchronization standalone in the core.
  • Simple interface

Applications

  • Distributed data acquisition
  • Ethernet based automation networks
  • Automation
  • Robotic
  • Automotive
  • Test and measurement

What’s Included?

  • Source Code (not encrypted, not obfuscated)
  • Reference Designs
  • Testbench with Stimulifiles
  • Configuration Tool
  • Documentation

Specifications

Identity

Part Number
NTL_PPS_MASTER
Vendor
NetTimeLogic GmbH
Type
Silicon IP

Files

Product Sheet Download
