The programmable CMOS frequency divider consists of two independent circuits.
Overview
The programmable CMOS frequency divider consists of two independent circuits. The first one a set of 8 serially connected dividers with the varied dividing ratio 2/3. This structure is especially effective for wide range of dividing ratio since the number of triggers to accomplish the specified ratio is minimized. The second divider is based on the prescaler with the varied dividing ratio 4/5 and the two programmable binary-decimal counters.
The dividing ratio is 16…4095. Input frequency is 1000...1900 MHz.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.
Key features
- iHP SGB25V
- Wide range of dividing ratio (16…4095)
- High operating frequency
- Low current consumption
- Compact structure
- Portable to other technologies (upon request)
Block Diagram

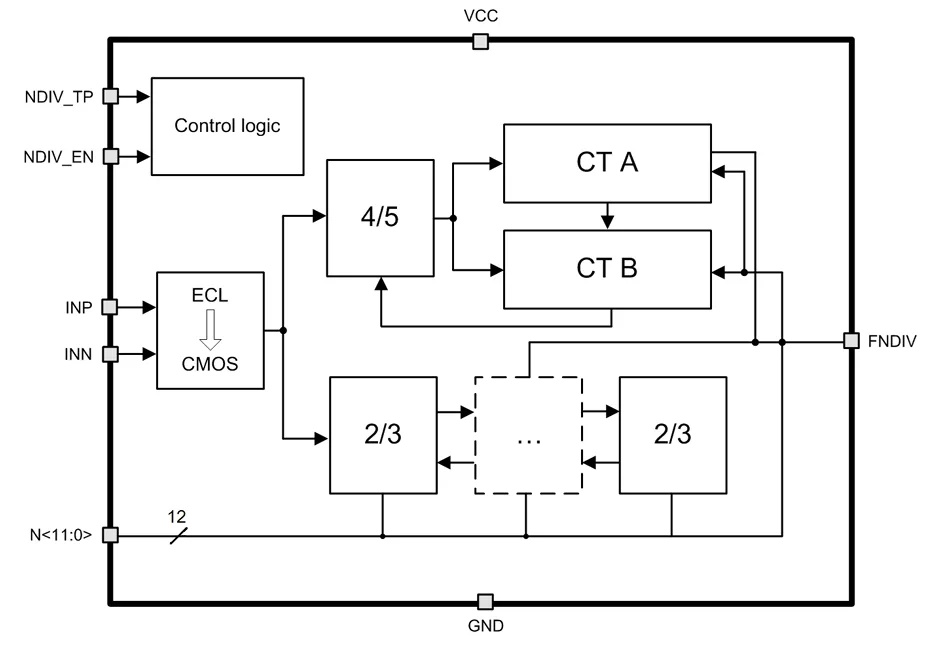

250iHP_NDIV_02 block diagram
Applications
- PLL frequency synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
