Poly-IP-53 (EIP-53) is IP for accelerating the Poly1305 hash-based message authentication algorithm (RFC7539), supporting the NIS…
Poly-IP-53 (EIP-53) is IP for accelerating the Poly1305 hash-based message authentication algorithm (RFC7539), supporting the NIST MAC mode up to 6.4 Gbps @ 450MHz. Designed for fast integration, low gate count and full transforms, the Poly-IP-53 accelerator provides a reliable and cost-effective embedded IP solution that is easy to integrate into high speed crypto pipelines.

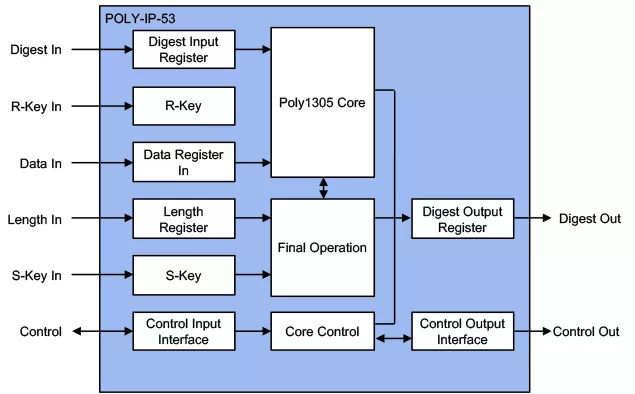

How the POLY-IP-53 works
The Poly-IP-53 is a family of the cryptographic library elements in the Rambus hardware IP library (formerly of Inside Secure). For example, the Poly-IP-53 is the cipher core embedded in the Vault-IP-140 platform security engines providing support for TLS1.3 and HomeKit IoT applications (Poly1305 is also available as software implementation in the VaultIP core). The accelerators include I/O registers, encryption and decryption cores, and the logic for feedback modes and key scheduling.
Sustained performance for any object sizes ranges from 1 to 6.4 Gbps depending on the configuration and area. Gate count is around 50K gates depending on the configuration.
Note: some files may require an NDA depending on provider policy.
Poly1305 Crypto Accelerator is a Symmetric Crypto IP core from Rambus, Inc. listed on Semi IP Hub.
Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Symmetric Crypto IP.
Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.
