What is Pipeline ADC?
Pipeline ADC is a ADC IP core from InPsy listed on Semi IP Hub.
Vendor:
InPsy
Category:
ADC
Pipeline ADC
The 8-bit 125 MSPS (Mega Samples Per Second) Pipeline Analog-to-Digital Converter (ADC) is a high-performance, low-power solution…
Overview
The 8-bit 125 MSPS (Mega Samples Per Second) Pipeline Analog-to-Digital Converter (ADC) is a high-performance, low-power solution designed for applications requiring fast and accurate digital conversion of analog signals. This ADC features a pipeline architecture, which provides a perfect balance of speed, power efficiency, and accuracy, making it ideal for a wide range of digital signal processing applications.
Key features
- High Sampling Rate: Capable of sampling up to 125 million samples per second, suitable for high-speed applications
- 8-bit Resolution: Provides 8-bit digital output, delivering precise quantization of input signals
- Pipeline Architecture: Ensures low latency and high throughput, ideal for real-time processing
- Low Power Consumption: Optimized for minimal power usage, enhancing energy efficiency in portable and battery-powered devices
- Wide Input Bandwidth: Supports a wide input bandwidth, enabling accurate digitization of high-frequency signals
- Latency: Low latency due to pipeline architecture
- Small Form Factor: Compact design allows for easy integration into space-constrained applications
- Robust Performance: Maintains high performance across a wide range of operating conditions, including temperature and voltage variations

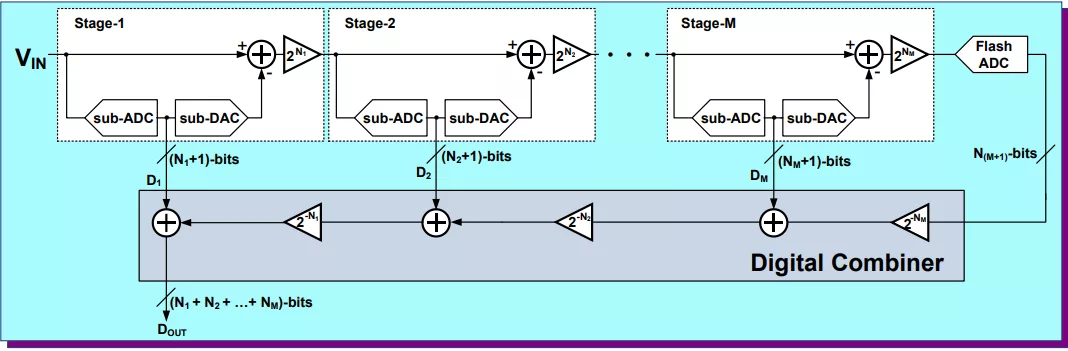

Block Diagram
Pipeline ADC block diagram
Specifications
Identity
Part Number
Pipeline ADC
Vendor
InPsy
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Taiwan (R.O.C.)
