Key features
- Designed to the latest PCI Express 6.0 (64 GT/s), 5.0 (32 GT/s), 4.0 (16 GT/s), 3.1/3.0 (8 GT/s), and PIPE 6.x (8, 16, 32, 64 and 128-bit) specifications
- Supports SerDes Architecture PIPE 10b/20b/40b/80b width
- Supports original PIPE 8b/16b/32b/64b/128b width
- Compliant with PCI-SIG Single-Root I/O Virtualization (SR-IOV) Specification
- Supports multiple virtual channels (VCs) in FLIT and non-FLIT modes
- Supports Endpoint, Root-Port, Dual-mode, Switch port configurations
- Supports PCIe 6.0 to PCIe 1.0 speeds
- Supports Forward Error Correction (FEC) – Lightweight algorithm for low latency
- Supports L0p Low Power mode
- Up to 4-bit parity protection for data path
- Supports Clock Gating and Power Gating
Block Diagram

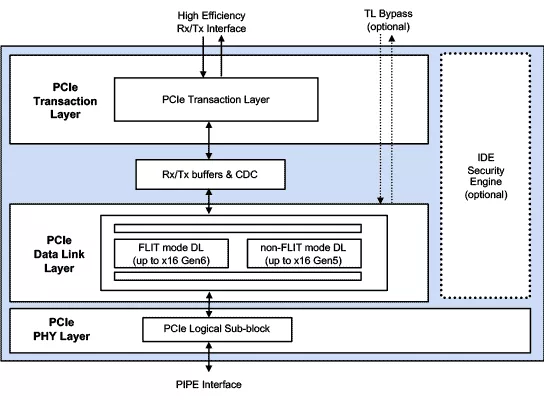

PCIe Gen 6 controller IP block diagram
Benefits
- Mature: Compliance-proven IP, with customer SoCs in volume production over many generations
- Application Optimized: IP features optimized for key verticals like storage, automotive, enterprise, and AI/ML, configured to your specific needs with minimal gate count
- Ease of Use: Fully verified pre-integrated IP delivery, with firmware and testbenches for rapid bring-up
