PCIe 5.0/4.0/3.0 PHY & Controller

The PCIe 5.0 IP solutions combine high-performance controllers and PHYs, fully compliant with PCIe 5.0/4.0/3.0, and PIPE specific…

Contact Provider Request Datasheet
PCIe 3.0 + 2 View all specifications

Overview

The PCIe 5.0 IP solutions combine high-performance controllers and PHYs, fully compliant with PCIe 5.0/4.0/3.0, and PIPE specifications. These solutions deliver exceptional performance, low latency, power efficiency, and unparalleled flexibility, making them ideal for enterprise computing, storage networks, automotive, and I/O connectivity applications.

Key features

  • Standard PHY interface enables multiple IP sources for PCI Express Logical Layer and provides a target interface for PCI Express PHY vendors.

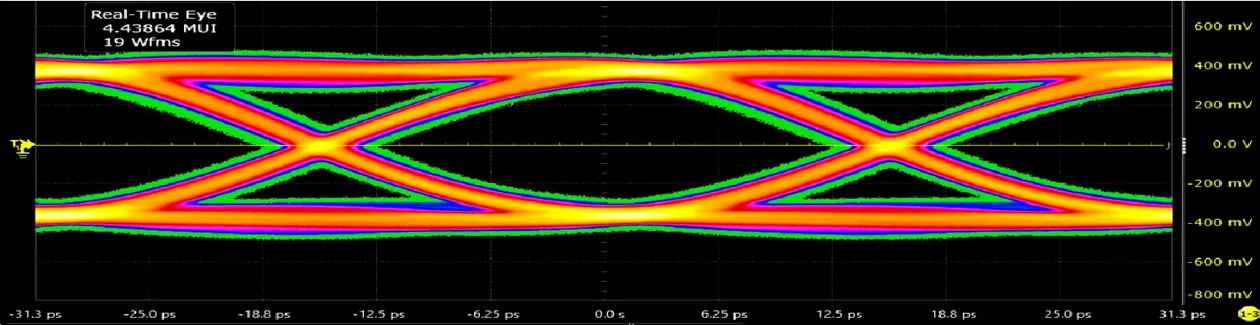

  • Supports 2.5/5.0/8.0/16.0Gb/s and 32.0Gb/s serial data transmission rate
  • Utilizes a 16-bit or 32-bit interface to transmit and receive PCI Express data
  • Allows integration of high speed components into a single functional block.
  • Data and clock recovery from serial stream on the PCI Express bus
  • Holding registers to stage transmit and receive data
  • Supports direct disparity control for use in transmitting compliance pattern
  • 8b/10b, 128b/130b encode/decode and error indication
  • Receiver detection
  • Beacon transmission and reception
  • Selectable Tx Margining, FFE and signal swing values
  • Built-In self-test and loopback test
  • Selectable Tx Margining and FFE taps
  • Selectable Rx CTLE peaking range and DFE taps
  • Auto calibrated and tunable on die termination (ODT)
  • Integrated IO with ESD protection aimed at HBM 2KV and CDM 250V
  • Well-tuned T-coil to promote ultra-high bandwidth

Block Diagram

PCIe 5.0/4.0/3.0 PHY & Controller block diagram

Benefits

  • PCIe5 fully covers all major processes, such as 14nm, 12nm, 8nm, 7nm, 6nm, 5nm, 4nm, 3nm
  • PCIe4/3/2 fully covers all major processes, such as 28nm, 22nm, 14nm, 12nm, 8nm, 7nm, 6nm, 5nm, 4nm, 3nm
  • Offers leading performance, power, and area per terabit
  • Optional Pl/Sl and thermal co-design service
  • Full support from IP delivery to production

What’s Included?

  • Verilog Sim Behavioral simulation model for the PHY
  • Encrypted IO spice netlist for SI evaluation
  • Integration Guidelines
  • Test Guidelines
  • GDSII Layout and layer map for foundry merge
  • Place and Route LIB and LEF views for the AFE
  • LVS and DRC verification reports

Specifications

Identity

Part Number
PCIe 5.0/4.0/3.0 PHY & Controller
Vendor
Innosilicon Technology Ltd
Type
Silicon IP

Standards & Interfaces

PCIe Version
PCIe 3.0 , PCIe 4.0 , PCIe 5.0

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Innosilicon Technology Ltd

Learn more about PCI Express IP core

PCIe 5.0: The universal high-speed interconnect for High Bandwidth and Low Latency Applications Design Challenges & Solutions

Innosilicon, a leading IP provider, offers a complete PCIe 5.0 solution stack that includes both PHY and controller IPs. Although both layers are crucial to achieving a fully compliant and high-performance PCIe interface, this paper deep dives into the technical challenges of PHY design, highlighting insights drawn from real-world design margins, receiver robustness, and advanced jitter analysis in the context of Gen5 systems.
