Vendor: T2M GmbH Category: NVMe Controller

NVM Express (NVMe) Controller (compliant with NVMe 1.4 Base Specification)

The NVM Express (NVMe) controller is compliant with NVMe 1.4 Base Specification.

Contact Provider Request Datasheet

Overview

The NVM Express (NVMe) controller is compliant with NVMe 1.4 Base Specification. Most of NVMe feature supported to achieve well compatibility, SRIOV is implemented with compact design to provide highly flexibility. Friendly FW interface let NVMe Controller IP can easily achieve host command with high efficiency.

Key features

  • Compliant with NVMe Specification v1.4
  • Support SR-IOV up to 16 VFs
  • Support SQ/CQ/IV up to 132
  • Support INTR, MSI and MSI-X interrupt mechanisms
  • Support outstanding command number up to 512
  • Support multi-namespace up to 32
  • Support write stream number up to 7
  • Support LBA format 512B and 4KB
  • Support IO Queue Depth up to 64K
  • Support SRAM ECC error protection
  • Support Data path CRC error detection
  • Support Read out of order
  • Support arbitration mechanisms with RR and WRR
  • Support Boot Partition
  • Support Interrupt Coalescing
  • Support Host Memory Buffer (Engine is not inside NVMe Controller)

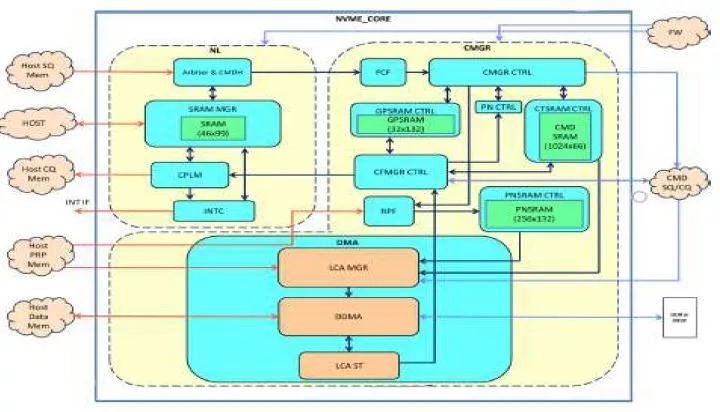

Block Diagram

NVM Express Controller IP block diagram

Benefits

  • Fully Compliant IP Core
  • Production Proven in multiple chip sets.

What’s Included?

  • User Manual
  • Behavior model, and protected RTL codes
  • Synopsys library (LIB)
  • Test patterns and Test Documentation

Specifications

Identity

Part Number
NVM Express Controller IP
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
T2M GmbH is the leading Global Technology Company supplying state of the art complex semiconductor connectivity IPs and KGDs, enabling the creation of complex connected devices for Mobile, IoT and Wearable markets. T2M's unique SoC White Box IPs are the design database of mass production RF connectivity chips supporting standards including Wifi, BT, BLE, Zigbee, NFC, LTE, GSM, GNS. They are available in source code as well as KGD for SIP / modules. With offices in USA, Europe, China, Taiwan, South Korea, Japan, Singapore and India, T2M’s highly experienced team provides local support, accelerating product development and Time 2 Market.
