High Performance Embedded Host NVMe IP Core

The IPM-NVMe_Host core is a verilog IP to be integrated in a FPGA or ASIC design.

Contact Provider Request Datasheet

Overview

The IPM-NVMe_Host core is a verilog IP to be integrated in a FPGA or ASIC design. It fully manages the NVMe and PCIe protocol on the host side without requiring any CPU and any specific knowledge. It can be used with any NVMe SSD available on the market, or with a custom design based on the IPM-NVMe_Device IP .

The IPM-NVMe_Host is well suited for embedded applications requiring a high throughput storage such as recorder and video applications. 1+ million IOPS performance requires the use of an expensive CPU, which is not feasible in an embedded system due to cost, space and power limitation.

Using the pre-validated IPM-NVMe_Host IP core greatly reduces time-to-market for storage OEM; this allows the OEM to benefit from a powerful data transfer manager. The IPM-NVMe_Host IP core is full featured and easy to use with multiple application interface such as AXI or RAM-like.



Description

The architecture of the Host NVM Express IP is based on 4 main blocks:

  • Automatic init engine: PCIe and NVMe device initialization, hardware discovering
  • User Interface: memory configuration and input for the transfer request by the API
  • NVMe command manager: translation of the data request from API into a NVMe command. Submission and completion pointers management
  • Data Transfer Engine: management of the data transfer between the NVMe SSD and the FIFO/memory

It delivers very low latency since it is a full hardware host NVMe implementation. That takes only few dozens of clock cycles (compared to multiple thousands of clock cycles for a software NVMe driver on a CPU). In addition, there is no needs of PCIe interrupt management because it is directly processed by the Host NVMe manager, therefore avoiding context switches.

Key features

  • Automatic PCIe/NVMe initialization
  • RAM or AXI4 or Avalon interface
  • Scalable architecture
  • options:
    • Opal 2.0 management
    • multiple queues management

Block Diagram

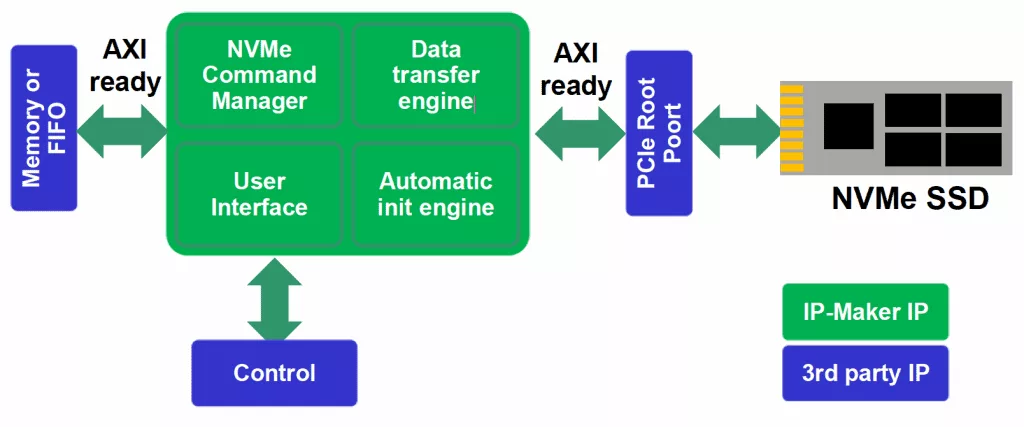

IPM-NVMe_Host block diagram

Benefits

  • NVM Express Compliant
  • Automatic PCIe/NVMe init
  • Up to PCIe Gen 3x8
  • IO read/write and shutdown commands
  • FIFO or AXI4 or Avalon interface
  • 128 or 256 bits data path

Applications

  • PCIe SSD

What’s Included?

  • Verilog RTL source code
  • Low level firmware
  • Synthesis scripts
  • Technical documentation
  • Technical support

Specifications

Identity

Part Number
IPM-NVMe_Host
Vendor
IP-Maker
Type
Silicon IP

Videos

This is the NVM Express demo from IP-Maker demonstrated at Flash Memory Summit 2012, Santa Clara, CA. The NVMe IP is integrated in a FPGA-based board including all the mandatory features of the NVM Express specification 1.0d. NVMe protocol is observed wit
This is the NVM Express demo from IP-Maker demonstrated at Flash Memory Summit 2022, Santa Clara, CA. The NVMe IP is integrated in a FPGA-based board including all the mandatory features of the NVM Express specification 2.0. NVMe protocol is observed with a protocol analyzer from Teledyne Lecroy.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

IP-Maker
HQ: France
Contact IP-Maker

Learn more about NVMe Controller IP core

NVMe host IP for computing accelerator

NVM Express (NVMe) SSDs are well adopted by the storage industry. It delivers high performances in term of IOPS, throughput and latency. It comes with a various range of capacity and form factors including PCIe Add-In-Card, 2.5" U.2, M.2 and recently as a single BGA chip.

NVMe IP for Enterprise SSD

Most of SSD manufacturers jumped into this new storage market with flash-based technology. A second wave of products will come in the near future, using a new generation of non-volatile memories, delivering impressive speed performances compared to NandFlash memories. The SSD manufacturers will have to deal with low latency SSD controller design in order to benefit from the new NVM features, while keeping high reliability and low power consumption. This white paper proposes a solution based on a full hardware NVMe implementation, describing its architecture, implementation and characterization.

Enabling security in embedded system using M.2 SSD

Storage technologies are evolving at a high speed, thanks to new generations of memories such as Nandflash, ReRAM, MRAM and other flavors. That leads in an incredible performance increase in term of bandwidth and latency. By the way, security and data privacy features are still an important feature for critical storage systems.

NVMe powers SSDs in the enterprise

With the emergence of non-volatile memory express (NVMe), a scalable host controller interface specifically developed for PCIe SSDs, and a supporting ecosystem plus dedicated devices such as NVMe programmable flash controller chips, the potential of PCIe SSDs for enterprise computing applications can be fully realized.
