Vendor: Trilinear Technologies, Inc. Category: Displayport

MST Topology Management Stack

The DisplayPort Multi Stream Transport (MST) Topology Management Software implements MST topology management for multiple monitor…

Contact Provider Request Datasheet

Overview

The DisplayPort Multi Stream Transport (MST) Topology Management Software implements MST topology management for multiple monitors on a Trilinear DisplayPort Transmitter IP core. The software enables customers to shorten time to market and reduce design risk using pre-tested, ready-to-deploy software. It provides necessary discovery and compliance testing of DisplayPort sink devices, such as monitors and hubs, for streaming to multiple display devices. Compliant with the latest standards, the software is ready to be integrated into a DisplayPort source application and provides the following:

  • Protocol Testing
  • Interoperability Testing
  • Link Configuration
  • Bandwidth Allocation
  • Aux Messaging

Key features

  • DisplayPort 1.4/2.1 compliant
  • Fully portable embedded C
  • Auto enumeration and stream management
  • High-performance source code optimized for a minimal footprint
  • Clearly defined, low function count interfaces
  • Source code deliverables or a compiled library
  • Fully documented API
  • Compliance tested
  • Software upgrades
  • Training and field support, assistance in all stages of the design

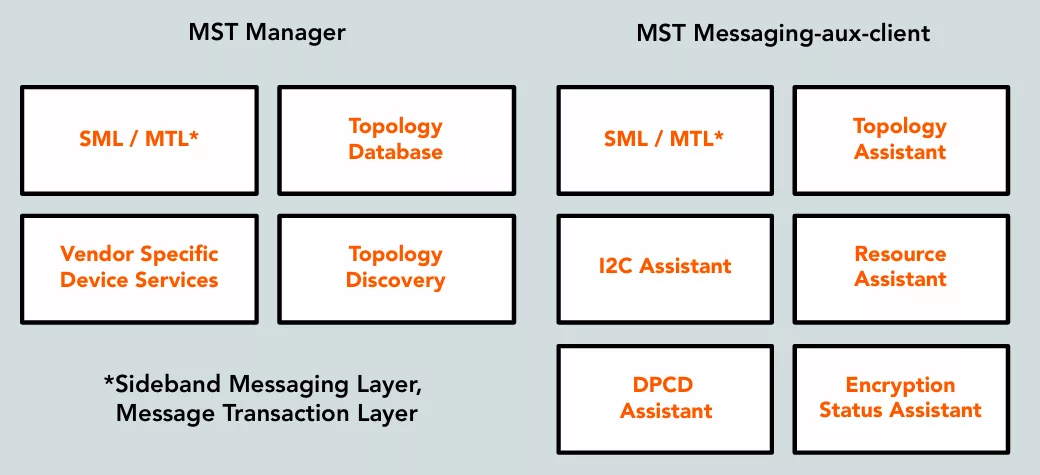

Block Diagram

DP-MST block diagram

Specifications

Identity

Part Number
DP-MST
Vendor
Trilinear Technologies, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Trilinear Technologies, Inc.
