Vendor: M31 Technology Corp. Category: MIPI PHY

MIPI TX CPHY_v2.0 / DPHY_v2.5, 3-TRIO/1C4D, TSMC 12FFC, E/W orientation

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices.

Contact Provider Request Datasheet
MIPI D-PHY TSMC 12nm FFC View all specifications

Overview

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices. To further improve throughput over bandwidth limited channel, the C-PHY is developed and is delivering 2.28 bits per symbol over three-wire trio. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides a silicon-proven, low-power and low cost C-PHY/D-PHY combo IP on various process nodes. Users can configure the PHY into D-PHY mode or C-PHY mode to support different applications using the same PHY. It is compliant to the PPI interface which allows seamless integration with upside controllers for Camera Serial Interface (CSI-2) and Display Serial Interface (DSI) protocols.

Key features

  • Compliant with MIPI D-PHY v2.5 and C-PHY v2.0 specifications
  • Supports MIPI DSI and CSI-2 protocols
  • Supports HS data rates up to 6Gbps (6Gsps) per lane (per trio)
  • Supports LS data rate of 10Mbps and Ultra-low power modes
  • Supports D-PHY mode with 1 clock lane & up to 4 data lanes
  • Supports C-PHY mode up to 3 trios for TX and 4 trios for RX
  • Supports extra RX mode with 2 sets of 1 clock lane & up to 2 data lanes
  • Supports Alternate Low-Power (ALP) mode
  • Provides D-PHY swap function for clock and data lane
  • Provides C-PHY swap function for trio
  • Provides a stand-alone BIST module for at-speed mass production testing
  • Certified with ASIL-B of ISO-26262

Block Diagram

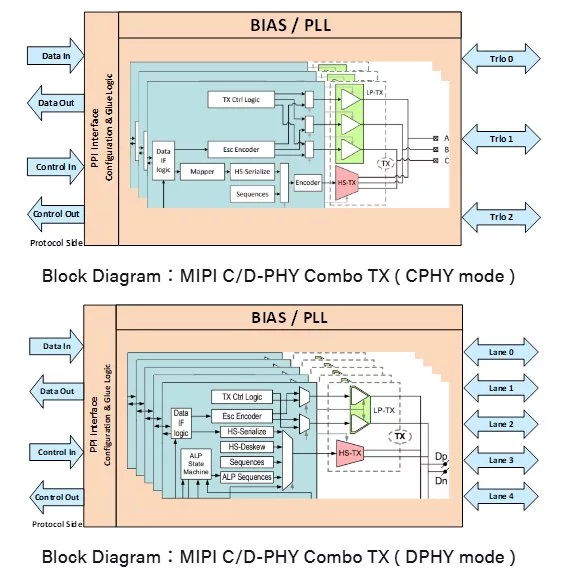

MIPI TX CPHY_v2.0 / DPHY_v2.5, 3-TRIO/1C4D, TSMC 12FFC, E/W orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 12nm FFC —

Specifications

Identity

Part Number
MIPI TX CPHY_v2.0 / DPHY_v2.5, 3-TRIO/1C4D, TSMC 12FFC, E/W orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Standards & Interfaces

MIPI PHY
MIPI D-PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.

Learn more about MIPI PHY IP core

M31 on the Specification and Development of MIPI Physical Layer
