Vendor: M31 Technology Corp. Category: MIPI PHY

MIPI RX CPHY_v1.2 / DPHY_v1.2, 3-TRIO/1C4D, TSMC 22ULL 1.8V, E/W orientation

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices.

Contact Provider Request Datasheet
MIPI D-PHY TSMC 22nm ULL View all specifications

Overview

MIPI D-PHY is a serial interface technology which is widely adopted in smartphones and other multimedia enabled mobile devices. To further improve throughput over bandwidth limited channel, the C-PHY is developed and is delivering 2.28 bits per symbol over three-wire trio. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides a silicon-proven, low-power and low cost C-PHY/D-PHY combo IP on various process nodes. Users can configure the PHY into D-PHY mode or C-PHY mode to support different applications using the same PHY. It is compliant to the PPI interface which allows seamless integration with upside controllers for Camera Serial Interface (CSI-2) and Display Serial Interface (DSI) protocols.

Key features

  • Compliant with MIPI D-PHY v1.2 and C-PHY v1.2 specs
  • Support both MIPI DSI and CSI-2 protocols
  • Support HS data rate from 80Mbps (0.8Gsps) up to 2.5Gbps (3.5Gsps) per lane (per trio)
  • Support LS data rate of 10Mbps and Ultra-low power mode
  • Support D-PHY mode with 1 clock lane & up to 4 data lanes
  • Support C-PHY mode up to 3 trios for TX and 4 trios for RX
  • Support TX-EQ function to compensate loss of a long channel
  • Support additional D-PHY RX mode with 2 sets of (1 clock lane and up to 2 data lanes)
  • Support additional C-PHY RX mode with 2 sets of 2 trios
  • Provide D-PHY clock and data lane swap function
  • Provide C-PHY trios swap function
  • Provide a stand-alone at-speed multi-lanes (trios) parallel BIST module for mass production tests

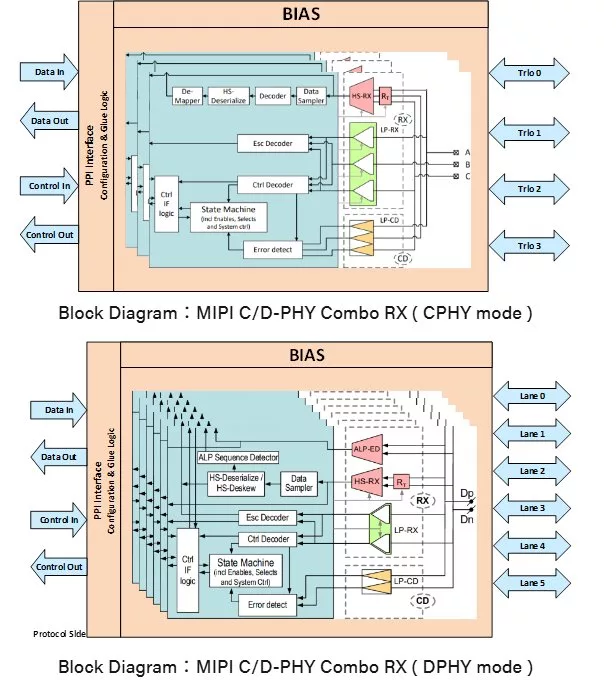

Block Diagram

MIPI RX CPHY_v1.2 / DPHY_v1.2, 3-TRIO/1C4D, TSMC 22ULL 1.8V, E/W orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULL —

Specifications

Identity

Part Number
MIPI RX CPHY_v1.2 / DPHY_v1.2, 3-TRIO/1C4D, TSMC 22ULL 1.8V, E/W orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Standards & Interfaces

MIPI PHY
MIPI D-PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.
