Vendor: M31 Technology Corp. Category: MIPI PHY

MIPI MPHY v3.1, 1Tx-1Rx Type-1, SMIC 40LL, N/S orientation

MIPI M-PHY is a serial interface technology with high bandwidth capabilities, which is particularly developed for mobile applicat…

Contact Provider Request Datasheet
MIPI M-PHY SMIC 40nm LL View all specifications

Overview

MIPI M-PHY is a serial interface technology with high bandwidth capabilities, which is particularly developed for mobile applications to obtain low pin counts along with excellent power efficiency. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides silicon-proven and low-power M-PHY in various process nodes. The M-PHY IP is optimized for UFS (Universal Flash Storage) applications, follows MIPI M-PHY v4.1 spec, supports a wide range of high-speed (HS) and low-speed (LS) data transfer, and complies with the RMMI interface for seamless integration with upside controllers. Moreover, M31 also provides various lane configurations for the M-PHY IP to meet different bandwidth requirements.

Key features

  • Supports RMMI interface for applications such as UNIPRO protocol (UFS, CSI-3, DSI-2) and DigRF
  • High speed gears, HS-G1A/B, HS-G2A/B and HS-G3A/B with scalable power consumptions
  • Burst mode CDR with short sync length (< 16SI)
  • Low speed PWM Gears from G1 to G4 with ultra-low power consumptions
  • Supports reference-less function during low-speed operation
  • Common lane configuration facilitates the lane scalability
  • Low latencies to switch to/from different power states
  • Supports multiple signal amplitudes
  • Supports internal loopback BIST functions for at-speed mass production testing
  • Certified with ASIL-B of ISO 26262

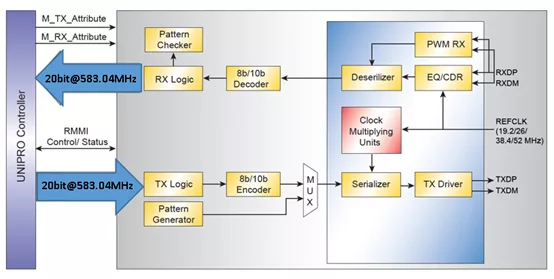

Block Diagram

MIPI MPHY v3.1, 1Tx-1Rx Type-1, SMIC 40LL, N/S orientation block diagram

Silicon Options

Foundry Node Process Maturity
SMIC 40nm LL —

Specifications

Identity

Part Number
MIPI MPHY v3.1, 1Tx-1Rx Type-1, SMIC 40LL, N/S orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Standards & Interfaces

MIPI PHY
MIPI M-PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.
