Vendor: M31 Technology Corp. Category: MIPI PHY

MIPI DPHY_RX v1.2, 2C4D, TSMC 22ULL 1.8V, E/W orientation

The D-PHY is a popular MIPI physical layer developed for mobile applications because it is a flexible, high-speed, low-power and …

Contact Provider Request Datasheet
MIPI D-PHY TSMC 22nm ULL View all specifications

Overview

The D-PHY is a popular MIPI physical layer developed for mobile applications because it is a flexible, high-speed, low-power and low-cost solution. As a MIPI Alliance contributor and leading Interface IP provider, M31 provides silicon-proven D-PHY in various process nodes. The D-PHY IP follows MIPI D-PHY v1.2/v1.1 spec and supports a wide range of high-speed (HS) and low-power (LP) data transfers. It is compliant to the PPI interface which allows seamless integration with upside controllers for Camera Serial Interface (CSI-2) and Display Serial Interface (DSI) protocols. Car manufacturers are also adopting MIPI specifications because the solutions are mature, relatively simple to use. M31 provides certified and compact PHY to support automotive applications.

Key features

  • Compliant with MIPI D-PHY specification up to v1.2/v1.1 (by different process nodes)
  • Supports MIPI DSI and CSI-2 protocols
  • Supports HS data rates up to 2.5Gbps (v1.2, per lane) . 1.5Gbps(v1.1, per lane)
  • Supports LS data rate of 10Mbps and Ultra-low power modes
  • Supports 1 clock lane & up to 4 data lanes
  • Supports extra RX mode with 2 sets of 1 clock lane & up to 2 data lanes
  • Provides swap function for clock and data lane to ease PCB design
  • Provides a stand-alone BIST module for at-speed mass production testing
  • Certified with ASIL-B of ISO-26262

Block Diagram

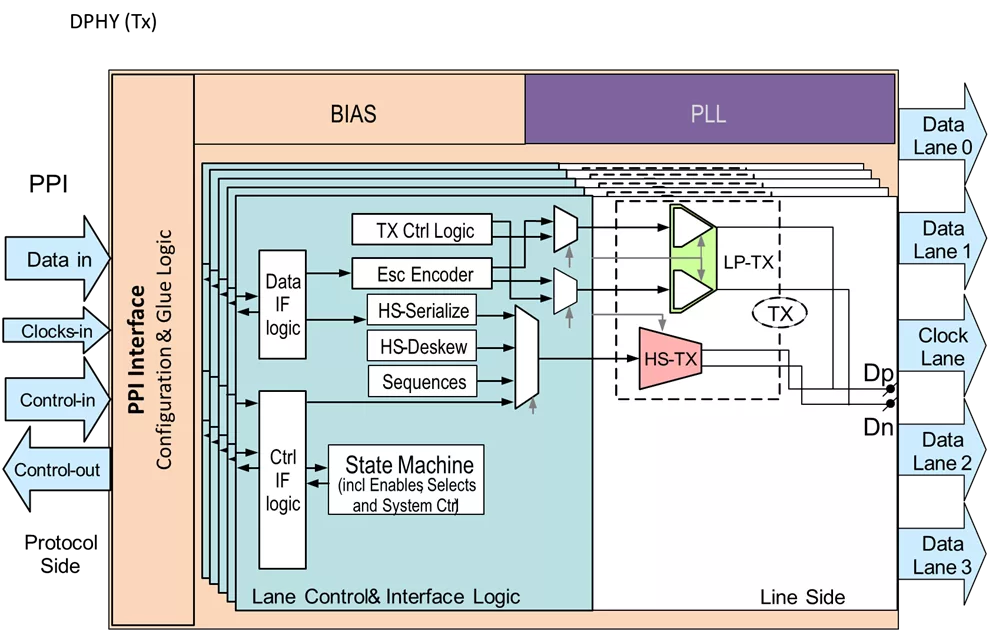

MIPI DPHY_RX v1.2, 2C4D, TSMC 22ULL 1.8V, E/W orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULL —

Specifications

Identity

Part Number
MIPI DPHY_RX v1.2, 2C4D, TSMC 22ULL 1.8V, E/W orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Standards & Interfaces

MIPI PHY
MIPI D-PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.

Learn more about MIPI PHY IP core

M31 on the Specification and Development of MIPI Physical Layer

MIPI is the abbreviation of "Mobile Industry Processor Interface". This article will introduce the physical layer specifications of MIPI architecture, and explain the features and benefits of D-PHY and C-PHY respectively. Then, the MIPI perspective on the development and challenges of automotive electronics and the professional MIPI technical services that M31 can provide will be shared.

M31 High-Speed and Long-Channel MIPI C/D-PHY Solution on TSMC N3P/N3C

With the rapid growth of AR/VR and high-resolution imaging systems such as drones and action cameras, MIPI CSI (Camera Serial Interface) and MIPI DSI (Display Serial Interface) require both high data throughput and low power consumption. M31 provides a MIPI C-PHY and D-PHY IP combo solution implemented on TSMC N3P and N3C processes.

Frequently asked questions about MIPI PHY IP

What is MIPI DPHY_RX v1.2, 2C4D, TSMC 22ULL 1.8V, E/W orientation?

MIPI DPHY_RX v1.2, 2C4D, TSMC 22ULL 1.8V, E/W orientation is a MIPI PHY IP core from M31 Technology Corp. listed on Semi IP Hub. It is listed with support for tsmc.

How should engineers evaluate this MIPI PHY?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this MIPI PHY IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
