MIPI D-PHY Rx IP, Silicon Proven in UMC 55LP
The MIPI D-PHY Analog RX IP Core completely complies with the D-PHY specification, version 1.2.
Overview
The MIPI D-PHY Analog RX IP Core completely complies with the D-PHY specification, version 1.2. The Display Serial Interface (DSI) and MIPI Camera Serial Interface (CSI-2) protocols can be utilized. Four data lanes and one clock lane make up this RX PHY's configuration. The D-PHY consists of a digital back end for controlling I/O operations and an analogue front end for producing and receiving electrical level signals. The intrinsic resistor is automatically terminated.
Key features
- Compliant to MIPI Alliance Standard for D-PHY specification Version 1.2
- Supports standard PPI interface compliant to MIPI Specification
- Supports synchronous transfer at high-speed mode with a bit rate of 80-2500 Mb/s
- Supports asynchronous transfer at low power mode with a bit rate of 10 Mb/s
- Supports ultra-low power mode, high-speed mode and escape mode
- Supports one clock lane and up to four data lanes
- Data lanes support transfer of data in high-speed mode
- Supports error detection mechanism for sequence errors and contentions
- Supports contention detection
- Configurable skew option for each Clock and Data lanes
- Silicon Proven in UMC 55 LP.

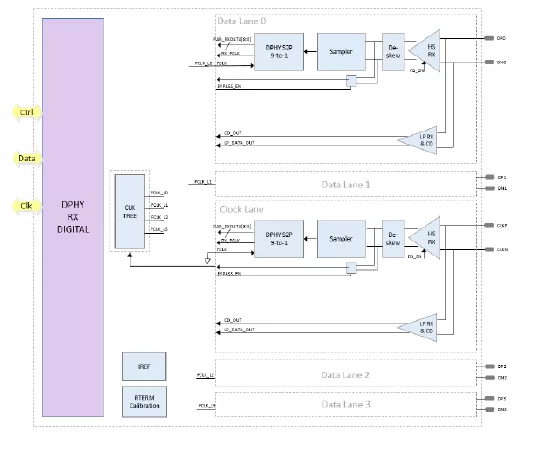

Block Diagram
MIPI D-PHY Rx IP in UMC 55LP block diagram
Applications
- PC, Television
- Data storage
- Multimedia Devices
- Recorders
- Mobile devices
What’s Included?
- GDSII & layer map
- Place-Route views (.LEF)
- Liberty library (.lib)
- Verilog behaviour model
- Netlist & SDF timing
- Layout guidelines, application notes
- LVS/DRC verification reports
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| UMC | 55nm | LP | In Production |
Specifications
Identity
Part Number
MIPI D-PHY Rx IP in UMC 55LP
Vendor
T2M GmbH
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI D-PHY
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Germany
