MIPI D-PHY Rx IP, Silicon Proven in SMIC 55LL
The D-PHY specification, version 1.2, is perfectly complied with by the MIPI D-PHY Analog RX IP Core.
Overview
The D-PHY specification, version 1.2, is perfectly complied with by the MIPI D-PHY Analog RX IP Core. Supported protocols include the Display Serial Interface (DSI) and MIPI Camera Serial Interface (CSI-2). This RX PHY consists of one clock lane and four data lanes. The D-PHY is made up of an analogue front end for creating and receiving electrical level signals and a digital back end for managing I/O operations. internally terminated resistor that is automatically calibrated.
Key features
- Compliant to MIPI Alliance Standard for
- D-PHY specification Version 1.2
- Supports standard PPI interface compliant to MIPI Specification
- Supports synchronous transfer at high-speed mode with a bit rate of 80-2500 Mb/s
- Supports asynchronous transfer at low power mode with a bit rate of 10 Mb/s
- Supports ultra-low power mode, high-speed mode and escape mode
- Supports one clock lane and up to four data lanes
- Data lanes support transfer of data in high-speed mode
- Supports error detection mechanism for sequence errors and contentions
- Supports contention detection
- Configurable skew option for each Clock and Data lanes
- Silicon Proven in SMIC 55LL
Block Diagram

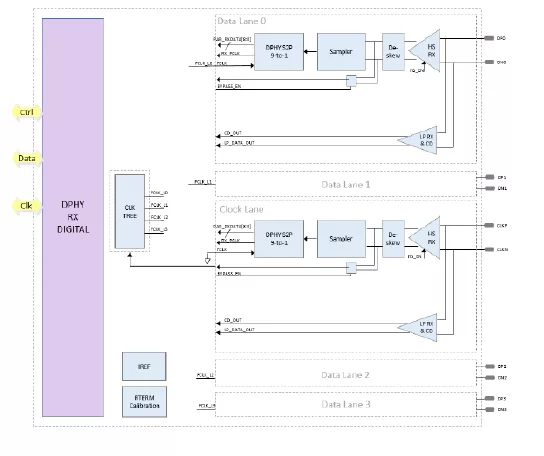

MIPI D-PHY Rx IP in 55LL block diagram
What’s Included?
- GDSII & layer map
- Place-Route views (.LEF)
- Liberty library (.lib)
- Verilog behaviour model
- Netlist & SDF timing
- Layout guidelines, application notes
- LVS/DRC verification reports
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 55nm | LL | In Production |
Specifications
Identity
Part Number
MIPI D-PHY Rx IP in 55LL
Vendor
T2M GmbH
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI D-PHY
Files
Note: some files may require an NDA depending on provider policy.
