MIPI D-PHY Receiver for CSI-2 of TSMC 40nm LP
The Renesas MIPI D-PHY Receiver is useful 2 Data Channel receiver hard macro for CSI-2 of TSMC 40nm LP process.
Overview
The Renesas MIPI D-PHY Receiver is useful 2 Data Channel receiver hard macro for CSI-2 of TSMC 40nm LP process.
Key features
- Renesas MIPI D-PHY Receiver can be used for analog Receiver of following interface.
- MIPI alliance Specification for D-PHY Version 2.1 15 December 2016.
- MIPI alliance Specification for Camera Serial Interface 2 (CSI-2) Version 2.0 7 Dec 2016.
- Technology is TSMC 40nm LP 1p8M (4x2y1z).
- Supply voltage can be applied 1.18V for core voltage, 1.8V for IO voltage.
- Maximum data rate of each channel is 1.0Gbps at High-speed mode.
Block Diagram

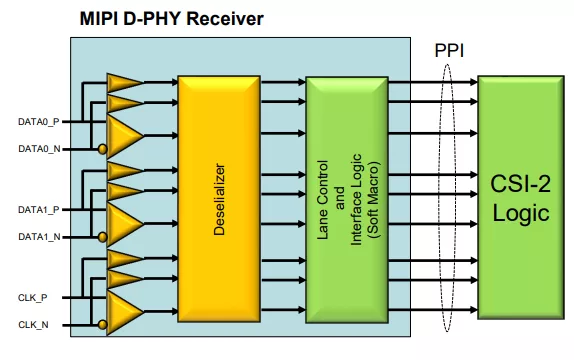

MIPI_D-PHY CSI (TSMC40LP) block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | LP eFlash | — |
Specifications
Identity
Part Number
MIPI_D-PHY CSI (TSMC40LP)
Vendor
Renesas
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI D-PHY
