MIPI D-PHY/LVDS Combo Transmitter IP

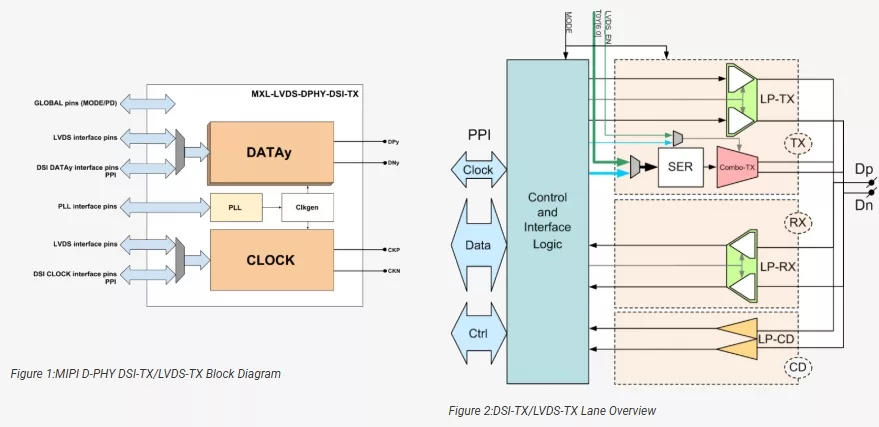

The MXL-LVDS-DPHY-DSI-TX is a combo PHY that consists of a high-frequency low-power, low-cost, source-synchronous, Physical Layer supporting the MIPI^® Alliance Standard for D-PHY and a high performance 4-channel LVDS Serializer implemented using digital CMOS technology.

In LVDS mode, both the serial and parallel data are organized into 4 channels. The parallel data is 7 bits wide per channel. The input clock is 25MHz to 150MHz. The serializer is highly integrated and requires no external components. The circuit is designed in a modular fashion and desensitized to process variations. This facilitates process migration, and results in a robust design.

• D-PHY Features:

  • Consists of 1 Clock lane and up to 4 Data lanes
  • Supports MIPI Standard 1.1 for D-PHY
  • Supports both high speed and low-power modes
  • 80 Mbps to 1.05Gbps data rate in high speed mode
  • 10 Mbps data rate in low-power mode
  • High Speed Serializer included
  • Low power dissipation
  • Optional resistance termination calibrator

• LVDS Features:

  • 24-150 MHz clock support
  • Up to 1050 Mbps bandwidth/channel
  • Up to 4.2 Gbps data throughput
  • Low power CMOS design
  • Integrated PLLs
  • 7 bit serial data transmitted per pixel clock per channel
  • Programmable rising/falling edge data strobe
  • Compatible with TIA/EIA-644 LVDS Standard
