Infineon Drives Automotive MCU Performance Higher with Synopsys Interface IP
Ron DiGuiseppe, Synopsys
Vendor:
Synopsys, Inc.
Category:
MIPI PHY
MIPI C-PHY v1.2 D-PHY v2.1 RX 3 trios/4 Lanes - TSMC7FF 1.8V, North/South Poly Orientation
The integrated C-PHY/D-PHY IP enables high-performance, low-power interface to SoCs, application processors, baseband processors,…
Overview
The integrated C-PHY/D-PHY IP enables high-performance, low-power interface to SoCs, application processors, baseband processors, and peripheral devices for mobile, automotive, artificial intelligence (AI), and IoT applications. The PHY, for FinFET processes and compliant with the MIPI C-PHY and D-PHY specifications, operates at 6.5Gb/s per lane and 6.5Gs/s per trio respectively for a maximum speed of 44.5Gb/s. The C-PHY/D-PHY addresses energy requirements by supporting low-power state modes and delivering below 1.2pJ/bit at the maximum speed. The PHY offers built-in test capabilities, including pattern generator, logic analyzer, and loopback modes covering all circuits. The C-PHY/D-PHY IP interoperates with the vendor’s ASIL B Ready ISO 26262 certified CSI-2 and DSI/DSI-2 controllers which support key features of the latest MIPI display and camera specifications.
Key features
- Compliant with the MIPI D-PHY specification, v2.1
- 4 Lanes in D-PHY mode up to 6.5Gb/s per lane
- Compliant with the MIPI C-PHY specification, v2.0
- 3 trios in C-PHY mode up to 6.5Gs/s per trio
- Aggregate throughput up to 44.5Gb/s in C-PHY mode and 26Gb/s in D-PHY mode
- Wide PHY Protocol Interface (PPI)
- Low-power escape modes and ultra low-power state modes
- Shutdown mode
- High speed BIST and at-speed scan test
- Primary, secondary, TX- and RX-only configurations
- Flexible input clock reference and lane/trio swap
- Silicon-proven, robust design available in advanced process technologies
Block Diagram

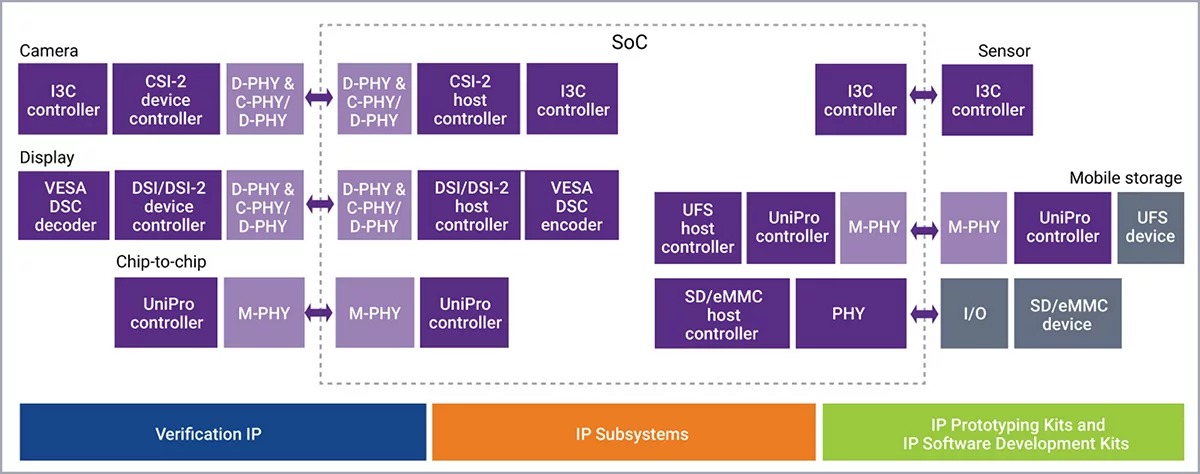

dwc_mipi_cd_12_21_rx_3t4l_tsmc7ff18ns block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 7nm | N7FF | — |
Specifications
Identity
Part Number
dwc_mipi_cd_12_21_rx_3t4l_tsmc7ff18ns
Vendor
Synopsys, Inc.
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI C-PHY
,
MIPI D-PHY
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
Learn more about MIPI PHY IP core
