The MIPI C-PHY IPis a high-frequency, low-power, low cost, physical layer.
Overview
The MIPI C-PHY IPis a high-frequency, low-power, low cost, physical layer.
The C-PHY configuration consists of up to three lane modules and is based on 3-Phase symbol encoding technology, delivering 2.28 bits per symbol over three-wire trios and targeting a maximum rate of 2.5 Gsps, 5.7Gbps.
The C-PHY is partitioned into a digital module – CIL (Control and Interface Logic) and a mixed-signal module. The PHY IP is provided as a combination of soft IP views (RTL, and STA Constraints) for the digital module, and hard IP views (GDSII/CDL/LEF/LIB) for the mixed-signal module. This unique offering of both soft and hard IP permits architectural design flexibility and seamless implementation in customer-specific design flow.
The CIL module interfaces with the protocol layer and determines the global operation of the module. The interface between the PHY and the protocol is using the PHY-Protocol Interface (PPI). The mixed-signal module includes high-speed signaling mode for fast-data traffic and low-power signaling mode for control purposes.
During normal operation, a lane switches between low-power and high-speed mode. Bidirectional lanes can also switch communication direction. The change of operating mode or direction requires enabling and disabling of certain electrical functions. These enable and disable events do not cause glitches on the lines that would result in a detection of incorrect signal levels. All mode and direction changes are smooth to always ensure a proper detection of the line signals.
The C-PHY is a complete PHY, silicon-proven at multiple foundries and multiple nodes. It is built to support the MIPI Camera Serial Interface (CSI) and Display Serial Interface (DSI).
Key features
- Support for MIPI® compliant C-PHY Specification Version 2.0 with backwards compatibility for MIPI C-PHY v1.2 and v1.1
- Supports up to 3 lanes/trios
- Supports both high-speed and low-power modes
- 80 Msps to 4.5 Gsps symbol rate per lane in C-PHY high-speed mode
- Equivalent to 182.8 Mbps to 10.26 Gbps per lane in C-PHY high-speed mode
- 10 Mbps data rate in low-power mode
- Supports CSI-2, DSI, and DSI-2
- Low power dissipation
- Loopback testability (BIST) support
Block Diagram

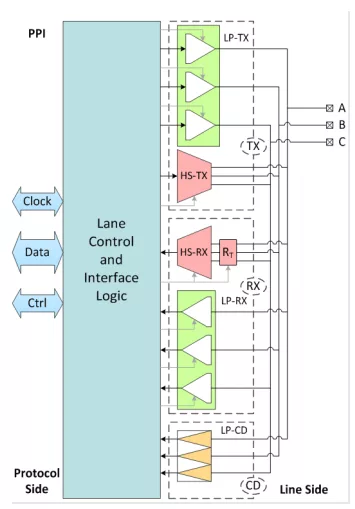

MXL-CPHY block diagram
Benefits
- Comprehensive embedded DFT features for allowing cost-effective high-volume manufacturing tests
- Support for full-speed internal loopback testability with minimal area overhead for high-volume manufacturing tests in the C-PHY Universal, TX+, and RX+ configurations
- Support for MIPI C-PHY v2.0 features not available in previous versions of the specifications such as Spread Spectrum Clocking (SSC) and transmit equalization (de-emphasis)
- Support for new power saving functionality such as HS-TX half swing mode and HS-RX unterminated mode
- Support for new Alternate LP Mode, suitable for IoT applications with long channels, enabling Fast Bus Turnaround
Specifications
Identity
Part Number
MXL-CPHY
Vendor
Mixel, Inc.
Type
Silicon IP
Standards & Interfaces
MIPI PHY
MIPI C-PHY
