Vendor: KNiulink Semiconductor Ltd. Category: MIPI PHY

MIPI C/D PHY

This MIPI D-PHY IP is designed to compliant with the MIPI D-PHY v1.2 specifications.

Contact Provider Request Datasheet
MIPI C-PHY View all specifications

Overview

This MIPI D-PHY IP is designed to compliant with the MIPI D-PHY v1.2 specifications. It is designed for low power and high-performance application. This IP supports data rate up to 2.5Gbps.

Key features

  • Compatible with MIPI D-PHY v1.2/CSI-2 protocol
  • Up to 4-lane 2.5Gbps/ lane
  • Support 2-Lane/4-Lane Application
  • Support HS mode (80Mbps to 2.5Gbps per lane) and LP mode (up to 10Mbps)
  • Support low power mode
  • Integrated control interface logic to support PHY Protocol Interface (PPI)
  • Supports up to four virtual channel
  • Support apb interface
  • Support DFT and BIST
  • Support 2048x1536@60Hz
  • CSI-2 ECC Detection and CRC Generation
  • Special packets for frame start, frame end, line start and line end information
  • Description for the type, pixel depth and format of the application specific payload data
  • Programmable parameters

Block Diagram

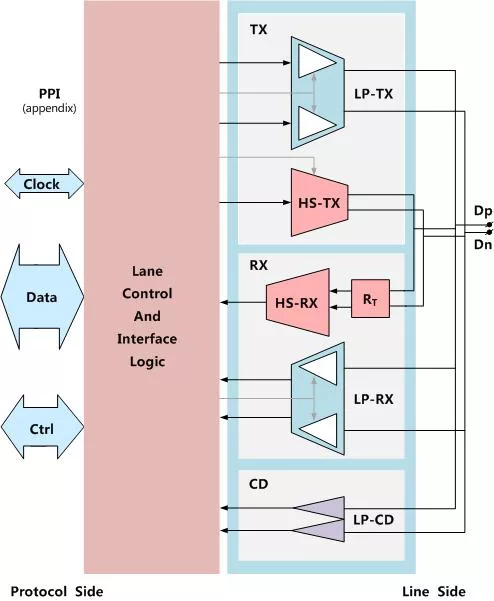

MIPI C/D PHY block diagram

What’s Included?

  • GDSII&CDL Netlist
  • Verilog Model
  • LEF Layout Abstract(.LEF)
  • Liberty Timing Models(.lib)
  • Verify Results
  • Specification
  • Datasheet
  • Integration Guideline
  • Evaluation Plan
  • Leading support for package design, SI&PI modeling and production test development

Specifications

Identity

Part Number
MIPI C/D PHY
Vendor
KNiulink Semiconductor Ltd.
Type
Silicon IP

Standards & Interfaces

MIPI PHY
MIPI C-PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact KNiulink Semiconductor Ltd.
