MIPI C/D-PHY Combo Rx IP, Silicon Proven in TSMC 22 ULP

In order to use the least amount of power and money, several production nodes use C-PHY/D-PHY Combo.

MIPI D-PHY TSMC 22nm ULP In Production View all specifications

Overview

In order to use the least amount of power and money, several production nodes use C-PHY/D-PHY Combo. The Combo PHY can be set up by users in either D-PHY or C-PHY mode to support a variety of applications. It is also PPI interface compliant, making it straightforward to connect to either the CIS-2 or DSI controller. In terms of PPA (Performance, Power, and Area) and standard compliances, D-PHY and C/D-PHY Combo are the most competitive foundry processes. The ISO 26262 ASIL-B certified MIPI D-PHY for automotive multimedia applications provides a wide range of features.

Key features

  • Compliant with MIPI D-PHY spec up to v2.5 and C-PHY spec up to v2.0
  • Support both MIPI DSI and CSI-2 protocols
  • Support HS data rate up to 6Gbps ( 6Gsps ) per lane (per trio)
  • Support LS data rate of 10Mbps and Ultra-low power mode
  • Support fast lane turnaround (FTA) and alternate low-power (ALP) mode
  • Support D-PHY mode with 1 clock lane & up to 4 data lanes
  • Support C-PHY mode up to 3 trios for TX and 4 trios for RX
  • Support TX-EQ and Rx-EQ function to compensate loss of a long channel
  • Support additional D-PHY RX mode with 2 sets of (1 clock lane and up to 2 data lanes)
  • Support additional C-PHY RX mode with 2 sets of 2 trios
  • Provide D-PHY clock and data lane swap function
  • Provide C-PHY trios swap function
  • Provide a stand-alone at-speed multi-lanes (trios) parallel BIST module for mass production tests
  • Silicon proven in TSMC 22 ULP

Block Diagram

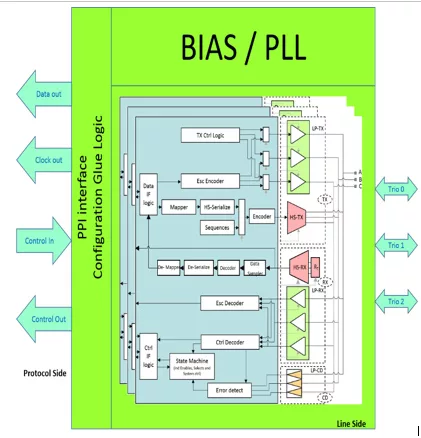

MIPI C/D-PHY Combo Rx IP in 22ULP block diagram
