Median Filter
Median filtering is a popular method of noise removal, employed extensively in applications involving speech, signal and image pr…
Overview
Median filtering is a popular method of noise removal, employed extensively in applications involving speech, signal and image processing. This non-linear technique has proven to be a good alternative to linear filtering as it can effectively suppress impulse noise while preserving edge information. The core’s flexible architecture supports a wide variety of video frame sizes on various Lattice device families. A simple IO handshake makes the core suitable for either streaming or bursty input video data.
Key features
- Single color plane
- Three filter window sizes: 3x3, 5x5 and 7x7
- Configurable input data width
- Input frame size set at compile-time
- Static active region selection
- Edge mode handling: COPY, MIRROR or VALUE
- Optional clock enable and synchronous reset ports

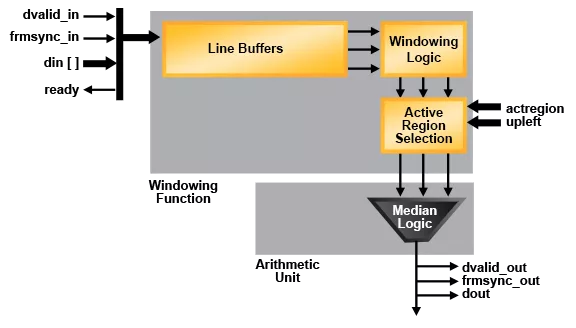

Block Diagram
MED-FILT block diagram
Specifications
Identity
Part Number
MED-FILT
Vendor
Lattice Semiconductor Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
