Vendor: Xiphera Ltd Category: MACsec

MACsec - Extreme-Speed Variant

MACsec is a point-to-point protocol located on layer two (Data Link) of the OSI model.

Overview

MACsec is a point-to-point protocol located on layer two (Data Link) of the OSI model. Xiphera's comprehensive MACsec solution portfolio safeguards the confidentiality and integrity of data transmitted over point-to-point communication links, assured by the Advanced Encryption Standard (AES) in Galois Counter Mode (GCM) with 256-bit key length.

The underlying cryptographic engines in the MACsec solutions are powered by Xiphera's in-house designed AES-GCM Intellectual Property (IP) cores.

Xiphera is offering three MACsec variants: MACsec Balanced, MACsec High-Speed, and MACsec Extreme-Speed

Key features

  • Optimised resource requirements
  • High throughput up to 100s of Gbps
  • Compliant with IEEE 802.1AE-2018
  • Powered by AES256-GCM
  • Pure RTL without hidden CPU or software components
  • Efficient and optimised architecture
  • Easy system integration
  • Vendor agnostic FPGA/ASIC implementation

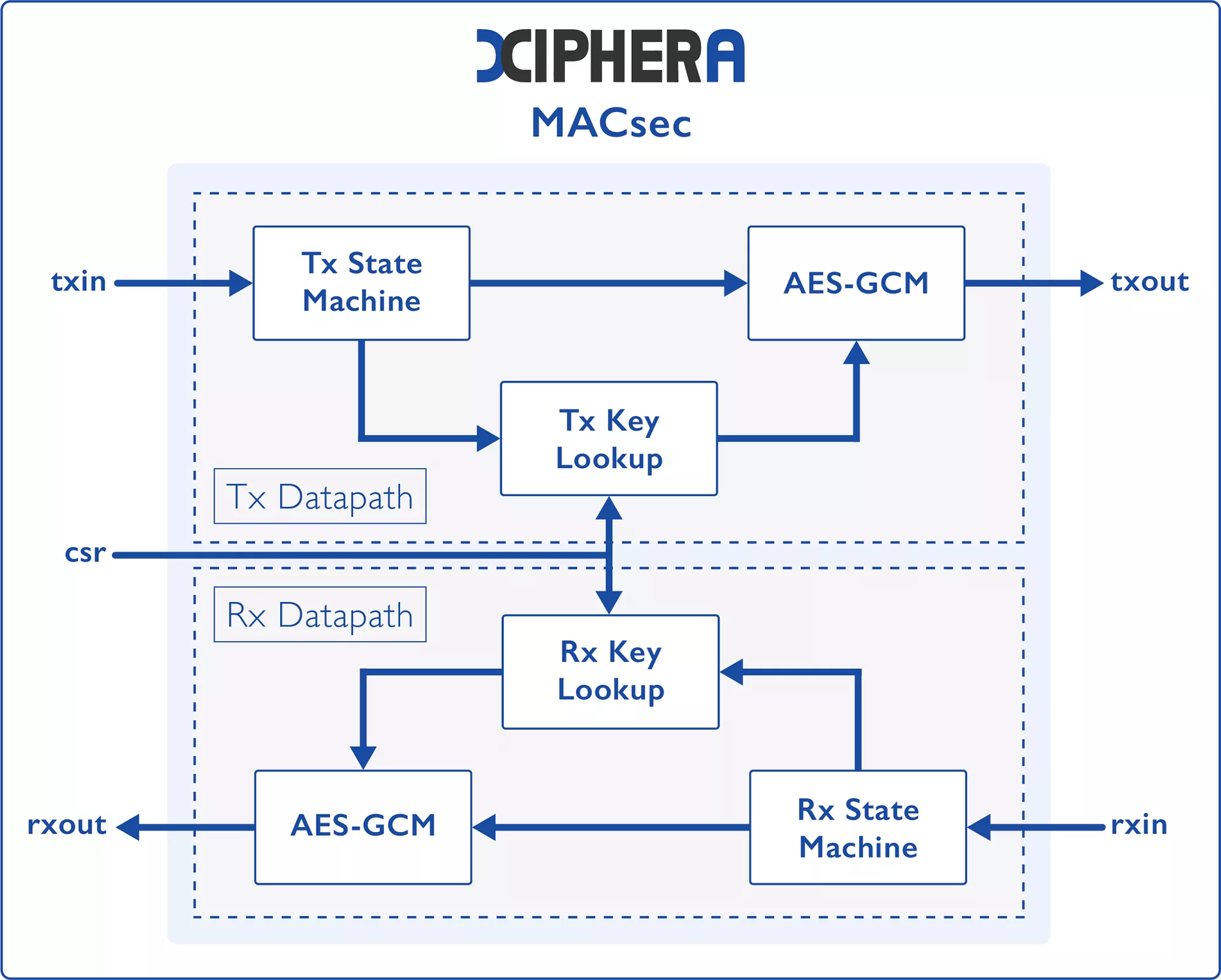

Block Diagram

Benefits

  • 217,213 ALMs; no multipliers/DSP blocks
  • Constant latency
  • Scalable databus width (128/256/512-bit)
  • Hundreds of Gbps, suitable for ultra-fast networks and data centres
  • Several bus interfaces available
  • IP core designed in-house at Xiphera
  • Technical support by the original designers and cryptographic experts

Applications

  • Interconnect security for cloud services and data centers
  • Enhanced IP/MPLS network protection
  • IoT device protection within LAN
  • Automotive ethernet communication
  • Secure point-to-point video links

What’s Included?

  • Encrypted RTL or source code
  • Sample synthesis scripts
  • Comprehensive simulation test bench, scripts & guide
  • Optional netlist
  • Instantiation file
  • Detailed datasheet and integration guide
  • Please contact sales@xiphera.com for pricing and your preferred delivery method

Specifications

Identity

Part Number
XIP1213E
Vendor
Xiphera Ltd
Type
Silicon IP

Files

Note: some files may require an NDA depending on provider policy.

Provider

HQ: Finland
