Vendor: Chipus Microelectronics Category: ADC

Low-Power 8-bit SAR ADC - 8 bits, 50kSPS, Low Voltage (1.8V), Low Power (20µA) TowerJazz 0.18 um

This macro-cell is a low power, general purpose, 8-bit, 50kSPS, Successive Approximation Register (SAR) Analog-to-Digital Convert…

8 Bit Tower 180nm SL Silicon Proven View all specifications

Overview

This macro-cell is a low power, general purpose, 8-bit, 50kSPS, Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) core designed for TowerJazz 0.18μm TS18SL CMOS technology.

The circuit has an internal sample-and-hold circuit and a power-down operation mode to save power in applications where power consumption is critical.

Key features

  • 8-bit resolution, 50kSPSspeed
  • avdd=1.8V, dvdd=1.8V
  • Low power (20µA) inactive mode
  • INL=±0.5 LSB, DNL=±0.5LSB
  • Power down operation mode
  • Indicative area:0.065mm2

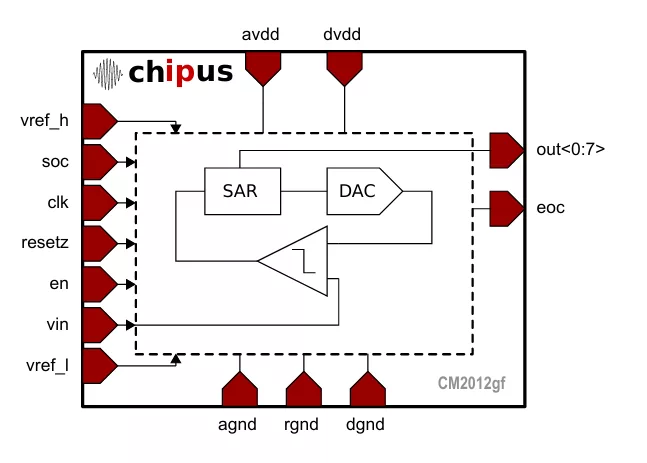

Block Diagram

CM2012gf block diagram

Silicon Options

Foundry Node Process Maturity
Tower 180nm SL Silicon Proven

Specifications

Identity

Part Number
CM2012gf
Vendor
Chipus Microelectronics
Type
Silicon IP

Analog

Resolution bits
8 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
