What is Low Dropout (LDO) Capless Regulator on 12nm?
Low Dropout (LDO) Capless Regulator on 12nm is a LDO Voltage Regulator IP core from Omni Design Technologies, Inc. listed on Semi IP Hub.
Vendor:
Omni Design Technologies, Inc.
Category:
LDO Voltage Regulator
Low Dropout (LDO) Capless Regulator on 12nm
The ODT-LDO-IC-250M-12nm is a low dropout (LDO), linear regulator for integration in a SoC.
Overview
The ODT-LDO-IC-250M-12nm is a low dropout (LDO), linear regulator for integration in a SoC. The LDO uses advanced control techniques to achieve excellent transient response, excellent PSRR performance and low noise.
The LDO has an integrated pass transistor and is stable with an on-chip capacitor of up to 1nF.
Key features
- Input voltage of 1.2V
- Output voltage of 0.8V to 0.95V
- Up to 250mA output current
- Stable with on-chip capacitor up to 1nF capacitance
- Excellent PSRR
- Fast load transient recovery
- Compact area
- Supports high impedance output mode
- Functional from -40°C to 125°C

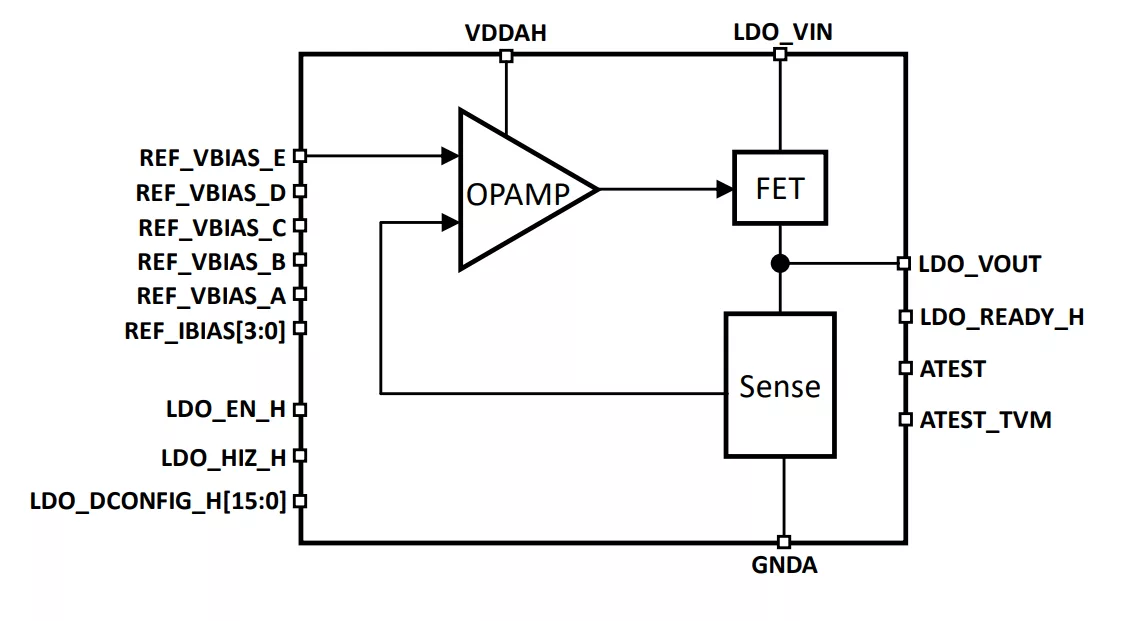

Block Diagram
ODT-LDO-IC-250M-12 block diagram
What’s Included?
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model
- Integration and Customer Support
Specifications
Identity
Part Number
ODT-LDO-IC-250M-12
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Provider
HQ:
USA
