20 mA LDO voltage regulator (output voltage 1.1V/1.2V/1.3V/1.4V)

055TSMC_LDO_09 IP is cap-based LDO voltage regulator designed to convert IO voltage 2.5V to 1.2V and supply analogy circuits with…

TSMC 55nm GP Silicon Proven View all specifications

Overview

055TSMC_LDO_09 IP is cap-based LDO voltage regulator designed to convert IO voltage 2.5V to 1.2V and supply analogy circuits with load up to 20mA. The output voltage can be programmable in the range from 1.1V to 1.4V.

Reference voltage 600V and reference current 10uA should be applied for IP operation.

Key features

TSMC EF CMOS 55nm
High precision stabilization voltage
Wide input voltage range from 2.25V to 3.6V
Output voltage value: 1.1V, 1.2V, 1.3V, 1.4V
Maximum load current 20mA
Low current consumption

Block Diagram

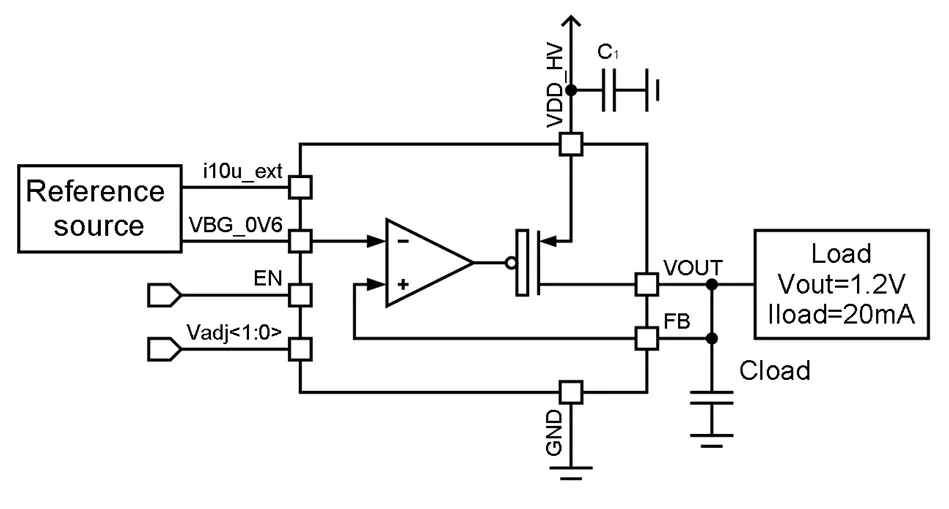

055TSMC_LDO_09 block diagram

Applications

Portable electronic devices
System-on-chip for different purposes
Measurement and calibration systems
Navigation systems
Communication systems

What’s Included?

Schematic or NetList
Abstract view (.lef and .lib files)
Layout (optional)
Verilog behavior model
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation
