Low Dropout (LDO) Capless Regulator on TSMC 7nm FFC
The ODT-LDO-IC-60M-7T-112 is a low dropout (LDO), linear regulator for integration in a SoC.
Overview
The ODT-LDO-IC-60M-7T-112 is a low dropout (LDO), linear regulator for integration in a SoC. The LDO uses advanced control techniques to achieve excellent transient response, excellent PSRR performance and low noise.
The LDO has an integrated pass transistor and is stable with an on-chip capacitor of up to 250pF
Key features
- TSMC 6/7nm FFC
- Input voltage of 1.2V
- Output voltage of 0.8V to 0.95V
- Up to 60mA output current
- Stable with on-chip capacitor up to 250pF capacitance
- Excellent PSRR
- Fast load transient recovery
- Compact area
- Supports high impedance output mode
- Functional from -40°C to 125°C
Block Diagram

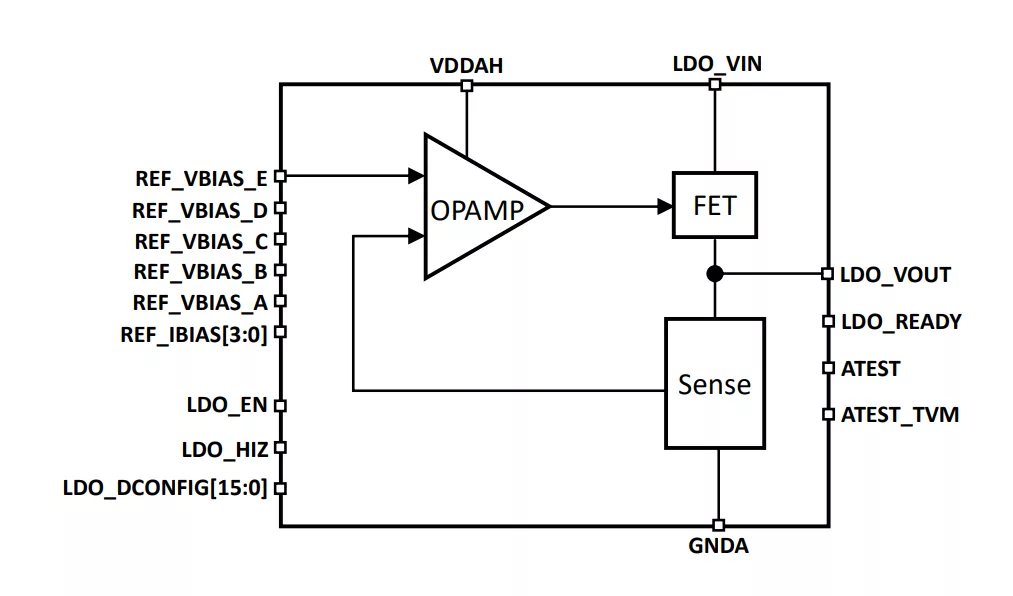

ODT-LDO-IC-60M-7T block diagram
Benefits
- High Performance Low Power, Low Area
What’s Included?
- Datasheet
- Hard Macro (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model
- Integration and Customer Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 7nm | N7+ | — |
Specifications
Identity
Part Number
ODT-LDO-IC-60M-7T
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Provider
HQ:
USA
