Vendor: Lorentis Electronics Category: Channel Coding

LDPC Forward Error Correction

High-reliability decoding that repairs corrupted bits on noisy links and performs close to the theoretical limit.

LDPC View all specifications

Overview

High-reliability decoding that repairs corrupted bits on noisy links and performs close to the theoretical limit.

Parameter Description
Data AXI4-Stream (soft LLR in, bits out)
Control AXI4-Lite registers
Devices AMD 7-series · UltraScale+ · Altera
Model Bit-accurate C / MATLAB

Key features

  • Iterative belief-propagation (layered min-sum) decoding
  • Configurable code rates and block sizes
  • Early termination on syndrome check
  • Encoder and decoder available separately
  • Low-latency, FPGA-optimized architecture

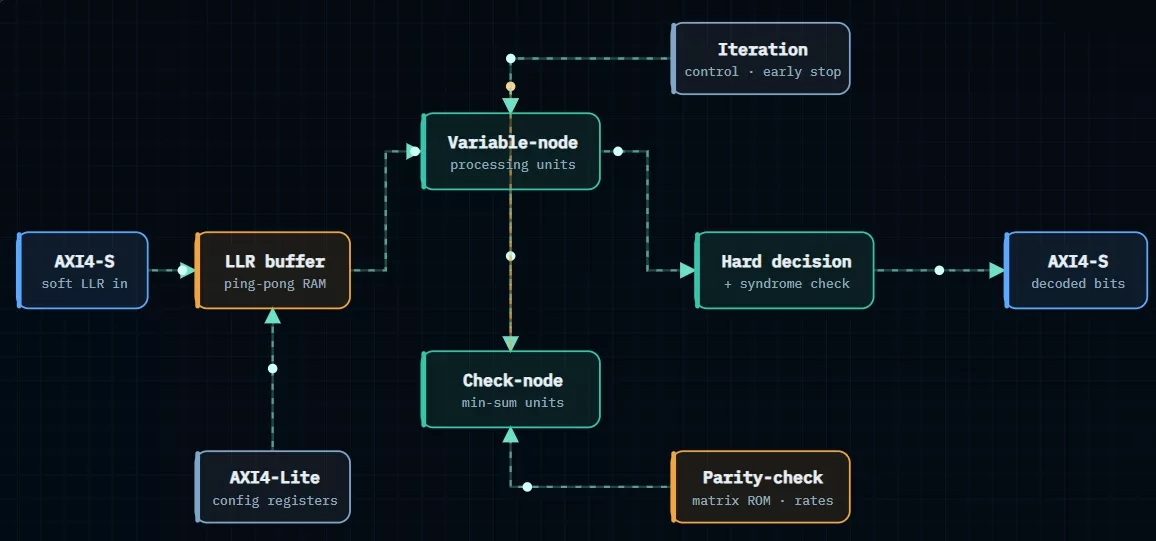

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
LDPC FEC
Vendor
Lorentis Electronics
Type
Silicon IP
Algorithm
LDPC

Provider

Lorentis Electronics
HQ: Türkiye
