Vendor: IP-Maker Category: Channel Coding

LDPC Encoder/Decoder IP Core

Nand Flash write cycles are limited.

Contact Provider Request Datasheet

Overview

Nand Flash write cycles are limited. An ECC detects and corrects failed operations, increasing the lifetime of the Nand Flash memory. For Nand Flash-based data storage, using an ECC is mandatory to ensure data validity. The IPM-LDPC is based on the LDPC algorithm. The  IPM-LDPC Encoder/Decoder is full-featured with multiple parameters to fit your own needs in FPGA and SoC designs.

In fact IPM-LDPC Encoder/Decoder is fully configurable, allowing to it reach the best latency or the smallest footprint.

Key features

  • IPM-LDPC for NandFlash Storage
    • Adaptable BER
    • Up to 6 checks per bit
    • customizable data path
  • IPM-LDPC for short code
    • option to be full asynchronous
    • option to be in 3 clock cycles
  • fully configurable
    • matrix generator
    • data path
    • number of iteration checks
    • packet size

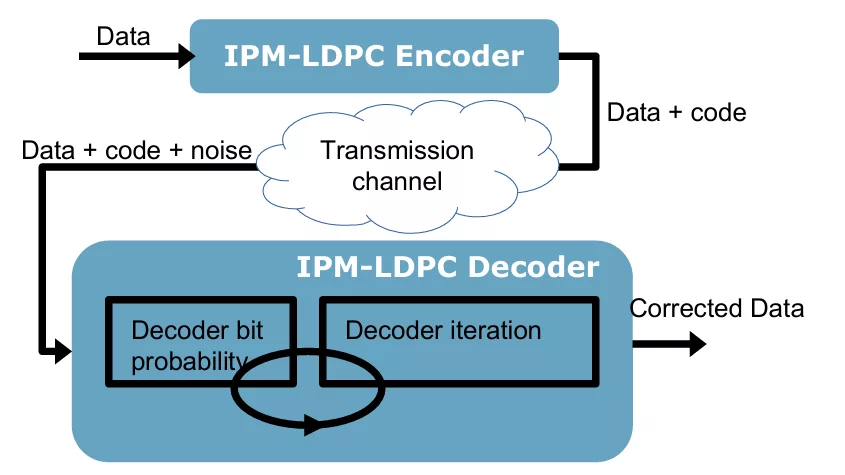

Block Diagram

IPM-LDPC block diagram

Benefits

  • Full hardware
  • High performance / low latency
  • Low gate count

What’s Included?

  • Verilog RTL source code
  • Simulation environment
  • Technical documentation
  • Technical support

Specifications

Identity

Part Number
IPM-LDPC
Vendor
IP-Maker
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

IP-Maker
HQ: France
Contact IP-Maker
