LDO voltage regulator (output voltage 2.7 V)

The regulator stabilizes the external voltage (supply voltage) and forms an output level of the specified value.

SMIC 180nm G Silicon Proven View all specifications

Overview

The regulator stabilizes the external voltage (supply voltage) and forms an output level of the specified value. Adjustment is carried out by positive feedback through the operational amplifier. Feedback allows for voltage drop on the wire by which stabilized voltage is supplied to the cell.
The block is fabricated on SMIC CMOS 0.18 um technology.

Key features

SMIC CMOS 0.18 um
Output voltage 2.7 V
High precision stabilization voltage
Several operating modes
Low current consumption
Small area
Low output level vs. supply voltage in a wide range
Portable to other technologies (upon request)

Block Diagram

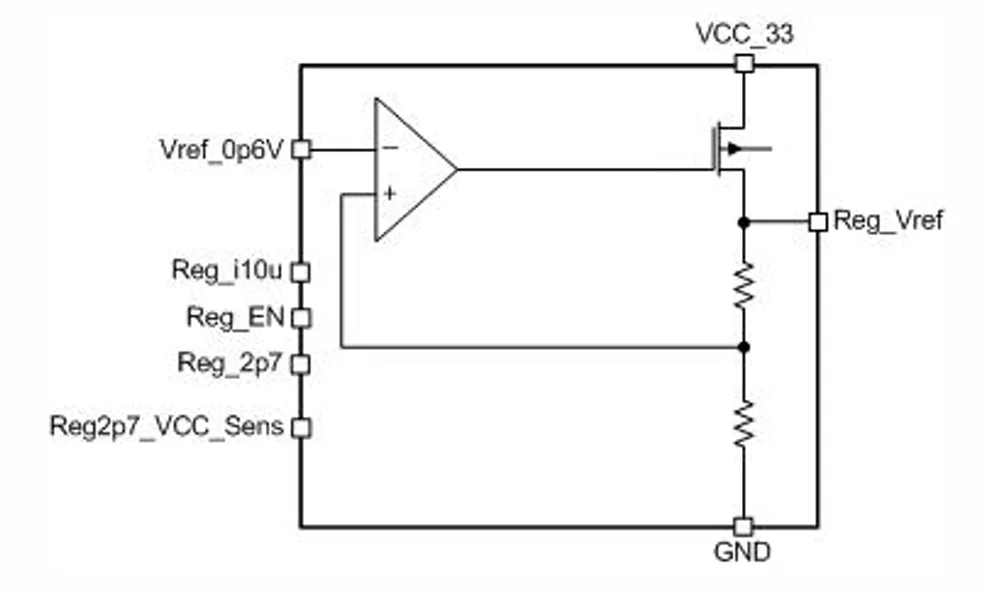

180SMIC_LDO_07 block diagram

Applications

Portable electronic devices
System-on-chip for different purposes
Measurement and calibration systems
Navigation systems
Communication systems

What’s Included?

Schematic or NetList
Abstract view (.lef and .lib files)
Layout (optional)
Verilog behavior model
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation
