What is LDO voltage regulator (output voltage 0 to 1.8 V)?
LDO voltage regulator (output voltage 0 to 1.8 V) is a LDO Voltage Regulator IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
LDO Voltage Regulator
LDO voltage regulator (output voltage 0 to 1.8 V)
Power supply voltage stabilizer converts supply voltage to voltage of the specified value and operates in two modes: DC/DC step d…
Overview
Power supply voltage stabilizer converts supply voltage to voltage of the specified value and operates in two modes: DC/DC step down converter and LDO. DC/DC step down converter mode offers high efficiency over a supply voltage range (up to 83.8%). Voltage adjustment is made by switching resistive chain in feedback circuit. Voltage drop on power line is also compensated by feedback.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.
Key features
- iHP SiGe BiCMOS 0.25 um
- Output voltage 0…1.8 V
- Load current 50 mA
- High precision stabilization voltage
- Low current consumption
- Small area
- High efficiency in DC/DC step down converter operating mode
- Portable to other technologies (upon request)

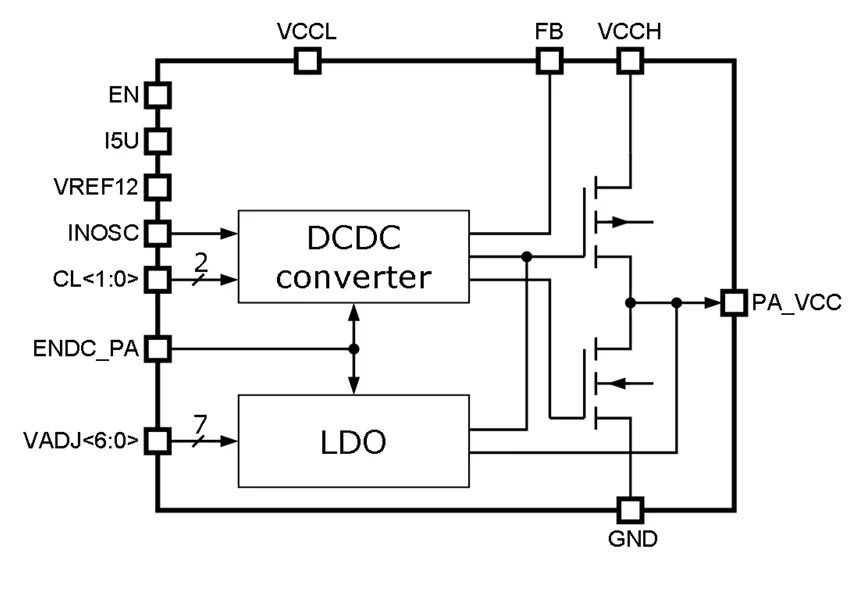

Block Diagram
250iHP_LDO_05 block diagram
Applications
- Portable electronic devices
- System-on-chip for different purposes
- Navigation systems
- Communication systems
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
250iHP_LDO_05
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
