LCD/HDMI Video Output Interface
LCD/HDMI Video output Interface supports various display modes and programmable display sizes.
Overview
LCD/HDMI Video output Interface supports various display modes and programmable display sizes. This core formats the incoming active video input into clocked video output by generating horizontal and vertical synchronization information and inserting horizontal and vertical blanking.
Key features
- Display modes
- RGB 4:4:4, RGB 5:5:5, RGB 5:6:5, RGB 6:6:6, RGB 8:8:8
- Supports programmable display size
- Supports progressive type of displays
- Programmable pixel clock frequency
- Programmable polarity of output enable, frameclock & line cloc
Block Diagram

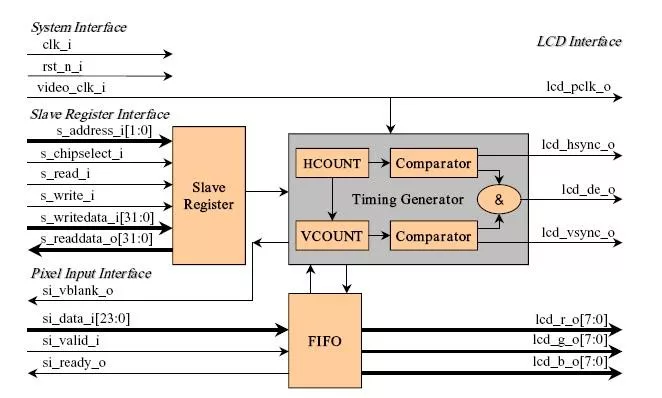

LCD/HDMI Video Output Interface block diagram
Benefits
- Simple design makes it easier to integrate in many FPGA families.
- Video output resolution can be programmable from QCIF to Hull HD
Applications
- Can be used to generate accurate timing for multiple displays like LCD, VGA and HDMI
- Can be used in all sorts of applications including consumer, entertainment , industrial and automotive which use LCDs
