Vendor: Racyics GmbH Category: GPIO

IO Library - GLOBALFOUNDRIES 22FDX

The general purpose 22FDX® IO Library features a rich set of digital and analog IO cells covering 1.2 V to 1.8 V I/O standards an…

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX Available on request View all specifications

Overview

The 22FDX IO Library features a rich set of digital and analog IO cells covering 1.2 V to 1.8 V I/O standards and 0.4 V to 0.8 V core voltages. Diverse special function cells are included. There is no need for specific back-biasing. Full bulk isolation and various bond options are available.

Description

  • General purpose IO combined GPIO / LVDS high-speed multi-standard differential IO Analog and special functions

Supply Voltages [V]

  • IO: 1.2 / 1.5 / 1.8
  • core: 0.40 / 0.45 / 0.50 / 0.55 / 0.60 / 0.65 / 0.80
  • (cell-type dependent)

ZBB (Zero Bias): yes

ABB: no

Ready for Evaluation: now

Ready for Testchip: now

Ready for Production: now

Key features

  • Library contains approx. 60 IO cells
  • Support for all metal-stacks of 22FDX
  • Automotive grade-1 compliant version available
  • Low voltage cells with nominal core voltages down to 0.4 V for glue-less interfacing to ULV Racyics ABX digital standard cell domains
  • Low leakage cells for ultra low power always-on domain usage
  • Highly configurable dual-GPIO cells with LVDS transceiver mode
  • High-speed multi-standard differential IO cell supporting LVDS, SGMII, SATA, PCIe, PECL, CML, with AC and DC coupling and digitally calibrated termination
  • Power-on-reset cell
  • Analog IOs, calibrated reference voltage

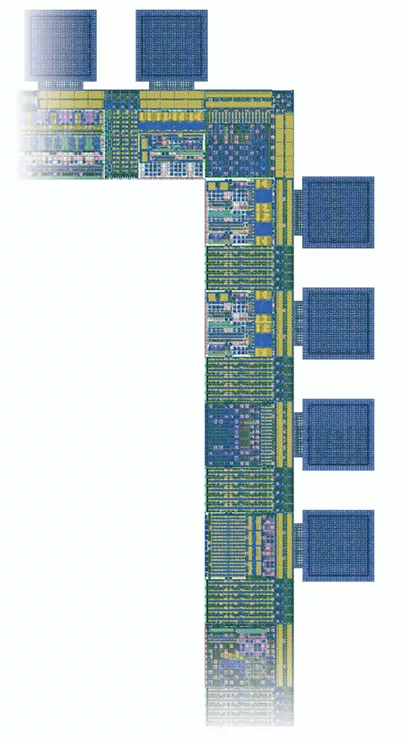

Block Diagram

rilib_gf22fdx_io block diagram

What’s Included?

  • Verilog simulation models
  • .lib/.db timing and power models (NLDM)
  • IBIS models
  • .lef layout abstract views
  • Milkyway database
  • GDSII layouts
  • LVS netlist

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Available on request

Specifications

Identity

Part Number
rilib_gf22fdx_io
Vendor
Racyics GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Racyics GmbH
HQ: Germany
Contact Racyics GmbH
